Int J Performability Eng ›› 2019, Vol. 15 ›› Issue (1): 167-178.doi: 10.23940/ijpe.19.01.p17.167178
Previous Articles Next Articles
Wenjie Dong(
), Sifeng Liu, Zhigeng Fang, and Yingsai Cao
Revised on
;
Accepted on
Contact:
Dong Wenjie
E-mail:dongwenjie@nuaa.edu.cn
About author:Wenjie Dong received his B.S. degree in industrial engineering from Shandong Jianzhu University, Jinan, China, in 2014, and he is currently working toward a Ph.D. in the College of Economics and Management at Nanjing University of Aeronautics and Astronautics, Nanjing, China. His research interests are reliability engineering and uncertainties.|Sifeng Liu is a professor in the College of Economics and Management at Nanjing University of Aeronautics and Astronautics, Nanjing, China. He received his Ph.D. in grey systems theory at Huazhong University of Science and Technology, Wuhan, China. He is the director of the Grey System Research Institute at Nanjing University of Aeronautics and Astronautics, the chairman of IEEE Grey System Society, and the vice chairman of IEEE SMC China (Beijing) Branch. His research interests include grey systems theory and complex equipment development and management. He is the editor-in-chief of two international journals: Grey Systems: Theory and Application and Journal of Grey Systems.|Zhigeng Fang is a professor in the College of Economics and Management at Nanjing University of Aeronautics and Astronautics, Nanjing, China. His research fields are grey systems theory and reliability management.|Yingsai Cao received his B.S. degree in management science and engineering from Nanjing University of Aeronautics and Astronautics, China, in 2014, and he is currently working toward a Ph.D. in the College of Economics and Management at Nanjing University of Aeronautics and Astronautics. His research interests are reliability engineering and complex equipment development and management.
Wenjie Dong, Sifeng Liu, Zhigeng Fang, and Yingsai Cao. Reliability Evaluation of Uncertain Multi-State Systems based on Weighted Universal Generating Function [J]. Int J Performability Eng, 2019, 15(1): 167-178.
Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

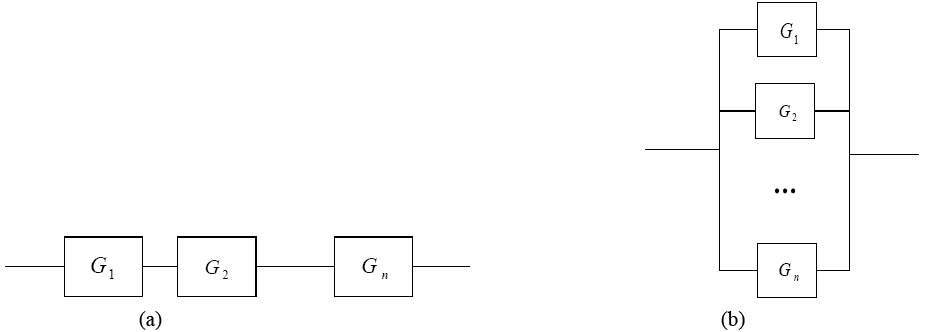

Figure 1
(a) A multi-state series system; (b) A multi-state parallel system"
Table 1
Relationship between system performance and component performances"
| Type of MSS | System performance | |
|---|---|---|
| Series system | Flow transmission MSS | $G_{s}^{(1)}=\min \{{{G}_{1}},{{G}_{2}},\cdots ,{{G}_{n}}\}$ |
| Task processing MSS | $G_{s}^{(2)}=\frac{1}{\sum\limits_{j=1}^{n}{(1/{{G}_{j}})}}$ | |
| Parallel system | Flow transmission MSS | $G_{s}^{(3)}=\sum\limits_{j=1}^{n}{{{G}_{j}}}$ |
| Task processing MSS | $G_{s}^{(4)}=\max \{{{G}_{1}},{{G}_{2}},\cdots ,{{G}_{n}}\}$ |

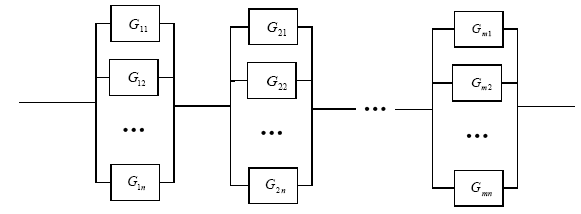

Figure 2
A general series-parallel system"

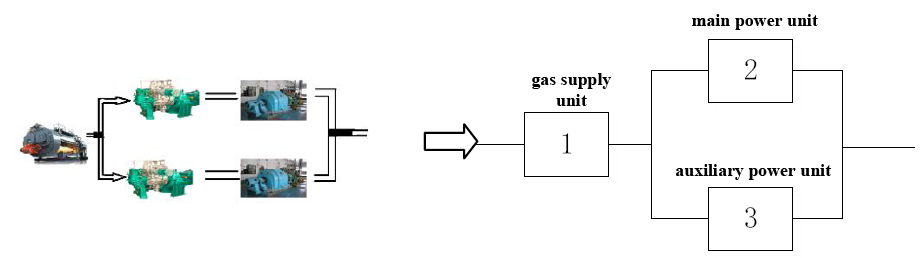

Figure 3
Structure of a steam turbine power generation system"
Table 2
Performance parameters of each component in the steam turbine power generation system"
| Component | Performance rate | Failure rate | Maintenance rate |
|---|---|---|---|
| 1 | ${{g}_{11}}=0$ | — | $\mu _{12}^{(1)}=120$ |
| ${{g}_{12}}=0.6$ | $\lambda _{21}^{(1)}=0.8$ | $\mu _{23}^{(1)}=150$ | |
| ${{g}_{13}}=0.9$ | $\lambda _{32}^{(1)}=1$ | — | |
| 2 | ${{g}_{21}}=0$ | — | $\mu _{12}^{(2)}=100$ |
| ${{g}_{22}}=0.8$ | $\lambda _{21}^{(2)}=1.5$ | $\mu _{23}^{(2)}=120$ | |
| ${{g}_{23}}=1.0$ | $\lambda _{32}^{(2)}=2$ | — | |
| 3 | ${{g}_{31}}=0$ | — | $\mu _{12}^{(3)}=100$ |
| ${{g}_{32}}=1.0$ | $\lambda _{21}^{(3)}=0.3$ | — |

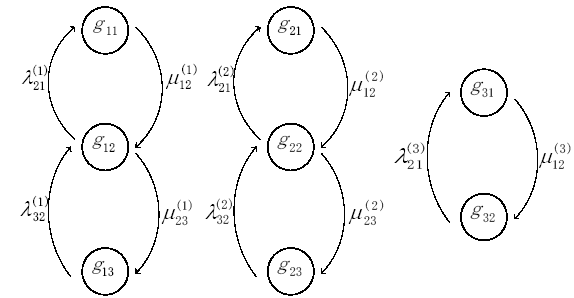

Figure 4
Transfer relationship between performance rate of each component"

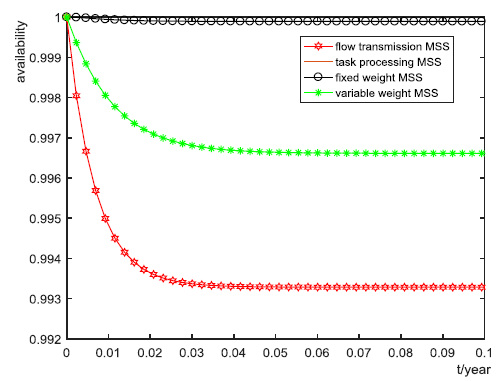

Figure 5
Availability of MSS"

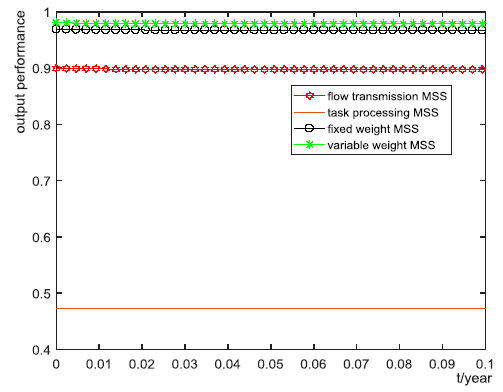

Figure 6
Mean output performance of MSS"

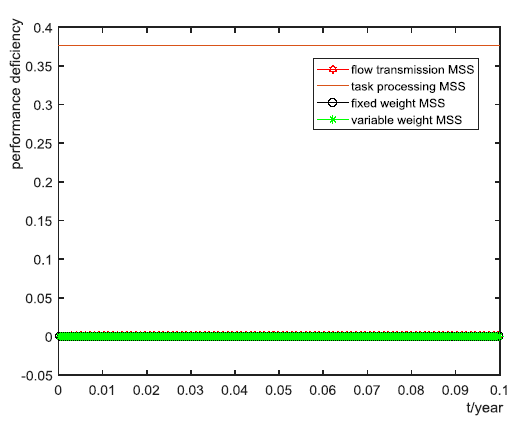

Figure 7
Mean performance deficiency of MSS"
Table 3
Steady-state reliability indices values"
| Reliability indices System style | Stable availability | Stable output performance | Stable performance deficiency |
|---|---|---|---|
| Flow transmission MSS | 0.9933 | 0.8980 | 0.0017 |
| Task processing MSS | 0 | 0.4730 | 0.3770 |
| Fixed weight MSS | 0.9998 | 0.9675 | $1.8489\times {{10}^{-6}}$ |
| Variable weight MSS | 0.9966 | 0.9742 | $4.1884\times {{10}^{-4}}$ |
| [1] |
I. B . Gertsbakh and M. Finkelstein, “Preventive Maintenance of Multistate Systems Subject to Shocks,”Applied Stochastic Models in Business & Industry, Vol. 32, No. 2, pp. 283-291, 2016
doi: 10.1002/asmb.2151 |
| [2] |
G. Levitin , “The Universal Generating Function in Reliability Analysis and Optimization, ” Springer London, 2005
doi: 10.1007/1-84628-245-4 |
| [3] |
A. Lisnianski, I. Frenkel, Y. Ding , “Multi-State System Reliability Analysis and Optimization for Engineers and Industrial Managers, ” Springer London, 2010
doi: 10.1007/978-1-84996-320-6 |
| [4] |
K. S . Meena and T. Vasanthi, “Reliability Analysis of Mobile Ad Hoc Networks using Universal Generating Function,” Quality & Reliability Engineering International, Vol. 32, No. 1, pp. 111-122, 2016
doi: 10.1002/qre.1731 |
| [5] | R. E . Barlowand A. S. Wu,“Coherent Systems with Multi-State Components,” Mathematics of Operations Research, Vol.3, No. 4, pp. 275-281, 1978 |
| [6] |
G. Levitin , “A Universal Generating Function Approach for the Analysis of Multi-State Systems with Dependent Elements,” Reliability Engineering & System Safety, Vol. 84, No. 3, pp. 285-292, 2004
doi: 10.1016/j.ress.2003.12.002 |
| [7] |
W. C. Yeh , “A New Approach to Evaluate Reliability of Multistate Networks under the Cost Constraint,” Omega, Vol. 33, No. 3, pp. 203-209, 2005
doi: 10.1016/j.omega.2004.04.005 |
| [8] | A. Lisnianski , “Extended Block Diagram Method for a Multi-State System Reliability Assessment,” Reliability Engineering & System Safety, Vol. 92, No. 12, pp. 1601-1607, 2007 |
| [9] |
A. Lisnianski , “The Markov Reward Model for a Multi-State System Reliability Assessment with Variable Demand,” Quality Technology & Quantitative Management, Vol. 4, No. 2, pp. 265-278, 2007
doi: 10.1080/16843703.2007.11673150 |
| [10] | Y. Ding, M. J. Zuo, A. Lisnianski , “Fuzzy Multi-State Systems: General Definitions, and Performance Assessment,”IEEE Transactions on Reliability,Vol. 57, No. 4, pp. 589-594, 2008 |
| [11] |
C. Y. Li, X. Chen, X. S. Yi, J. Y. Tao , “Interval-Valued Reliability Analysis of Multi-State Systems,” IEEE Transactions on Reliability, Vol. 60, No. 1, pp. 323-330, 2011
doi: 10.1109/TR.2010.2103670 |
| [12] | Y. F. Li, Y. Ding, E. Zio , “Random Fuzzy Extension of the Universal Generating Function Approach for the Reliability Assessment of Multi-State Systems under Aleatory and Epistemic Uncertainties,” IEEE Transactions on Reliability,Vol. 63, No. 1, pp. 13-25, 2014 |
| [13] | E. Zio , “The Monte Carlo Simulation Method for System Reliability and Risk Analysis, ” Springer Publishing Company, Incorporated, 2014 |
| [14] |
Y. F . Li and E. Zio, “A Multi-State Model for the Reliability Assessment of aDistributed Generation System via Universal Generating Function,” Reliability Engineering & System Safety, Vol. 106, No. 5, pp. 28-36, 2012
doi: 10.1016/j.ress.2012.04.008 |
| [15] | J. L. Qin, Y. G. Niu, Z. Li , “A Combined Method for Reliability Analysis of Multi-State System of Minor-Repairable Components,” Eksploatacja i Niezawodnosc - Maintenance and Reliability, Vol. 18, No. 1, pp. 80-88, 2016 |
| [16] | P. Gao and L. Xie,“Reliability Analysis of Multi-StateSystems based on Improved Universal Generating Function,” Acta Aeronautica Et Astronautica Sinica, Vol. 31, No. 5, pp. 934-939, 2010 |
| [17] |
E. Zio , “Some Challenges and Opportunities in Reliability Engineering,”IEEE Transactions on Reliability, Vol. 99, pp. 1-14, 2017
doi: 10.1109/TR.2016.2591504 |
| [18] | Yager andR. Ronald, “On Ordered Weighted Averaging Aggregation Operators in Multi-Criteria Decision Making,” Readings in Fuzzy Sets for Intelligent Systems, Vol. 18, No. 1, pp. 80-87, 1993 |
| [19] |
G. Levitin , “Reliability of Multi-StateSystems with Common Bus Performance Sharing,” IIE Transactions, Vol. 43, No. 7, pp. 518-524, 2011
doi: 10.1080/0740817X.2010.523770 |
| [20] |
R. Peng, H. Xiao, H. Liu , “Reliability of Multi-State Systems with a Performance Sharing Group of Limited Size,”Reliability Engineering & System Safety, Vol. 166, pp. 164-170, 2016
doi: 10.1016/j.ress.2016.09.008 |
| [21] | G. W . Wei and W. Yi, “A Method for Interval-Valued Intuitionistic Fuzzy Multiple Attribute Decision Making with Incomplete Weight Information,”International Journal of Computational Intelligence Systems, No. 129, 2007 |
| [22] |
Z. S. Xu , “An Overview of Methods for Determining OWA Weights,” International Journal of Intelligent Systems, Vol. 20, No. 8, pp. 843-865, 2005
doi: 10.1002/int.20097 |
| [23] | Y. Wang and Z. S. Xu, “A New Method of Giving OWA Weights,” Mathematics in Practice and Theory, Vol. 38, No. 3, pp. 51-61, 2008 |
| [24] | Q. M. He , “Fundamentals of Matrix-Analytic Methods, ” Springer New York, 2014 |
| [25] | C. Y. Li, X. Chen, X. S. Yi , “Reliability Analysis of Primary Battery Packs based on the Universal Generating Function Method,”Proceedings of the Institution of Mechanical Engineers Part O Journal of Risk & Reliability, Vol. 223, No. 3, pp. 251-257, 2009 |
| [26] | T. Nacef, E. Châtelet, Y. Bouzidi , “How Combined Performance and Propagation of Failure Dependencies Affect the Reliability of a MSS,”Reliability Engineering & System Safety, Vol. 169, pp. 531-541, 2018 |
| [27] |
Y. Q. Luo, J. B. Xia, T. P. Chen , “Comparison of Objective Weight Determination Methods in Network Performance Evaluation,” Journal of Computer Applications, Vol. 29, No. 10, pp. 2624-2626, 2009
doi: 10.3724/SP.J.1087.2009.02624 |
