Reliability Modeling of Complex Machinery and Electronic Products based on the Identification of Vital Components

doi:10.23940/ijpe.19.01.p16.156166

Abstract

Abstract:

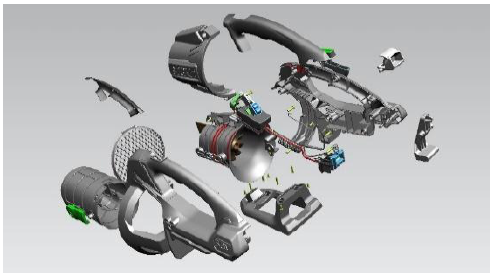

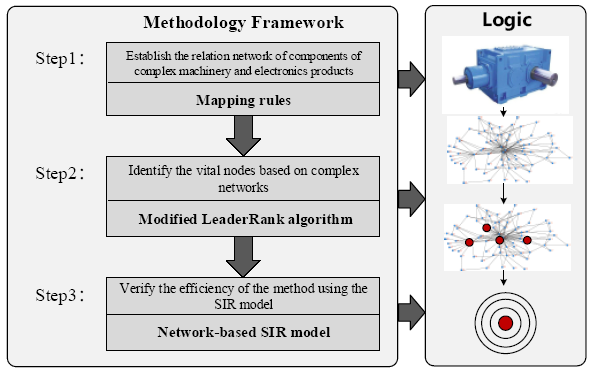

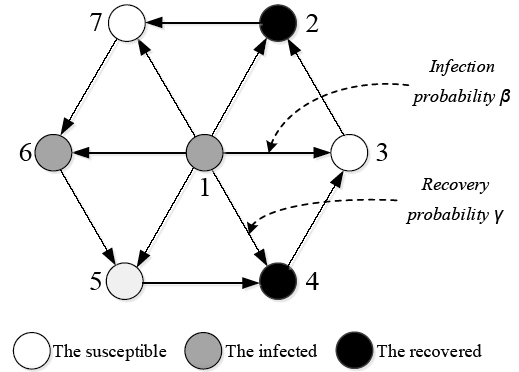

As the core of product architecture, the vital components of complex machinery and electronics products are of great significance in the process of product development, design, and manufacturing. However, it is very difficult to identify the vital components from a large number of components. Based on this, a vital components identification method on the basis of complex networks is proposed. First, the weighted and directed complex network (WDCN) of the relationships between the components is established. Then, the modified LeaderRank algorithm is used to identify the vital nodes in the network; this algorithm has shown low computational complexity and high calculation efficiency. Finally, a classical disease outbreak model, SIR (Susceptible-Infective-Recovered), is used to verify the correctness of the identification results. In the case of complex electric blower products, the vital components are identified using the proposed method, and the final result shows the effectiveness of this method. Such identification lays the firm foundation for the dramatic improvement of the reliability and quality of complex machinery and electronics products.

Key words: complex networks, complex machinery and electronics products, vital components, LeaderRank algorithm, complex electric blower

Zhaotong Wang, Yupeng Li, Mengze Li, and Xiaoyu Zhong. Reliability Modeling of Complex Machinery and Electronic Products based on the Identification of Vital Components [J]. Int J Performability Eng, 2019, 15(1): 156-166.

Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

Figures/Tables 13

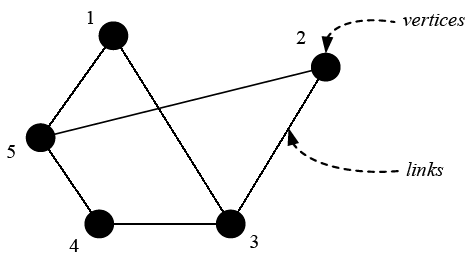

Figure 1

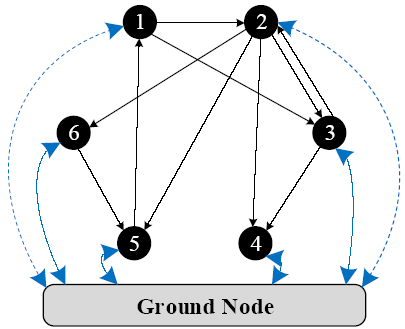

Figure 2

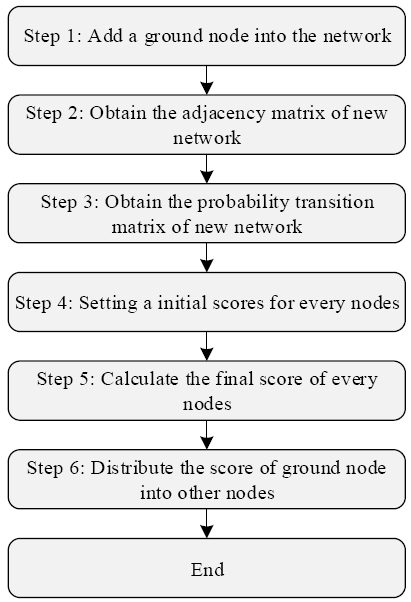

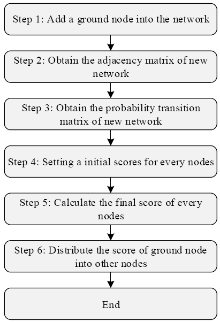

Figure 3

Table 1

Table 2

Figure 4

Figure 5

Figure 6

Figure 7

Table 3

Figure 8

Table 4

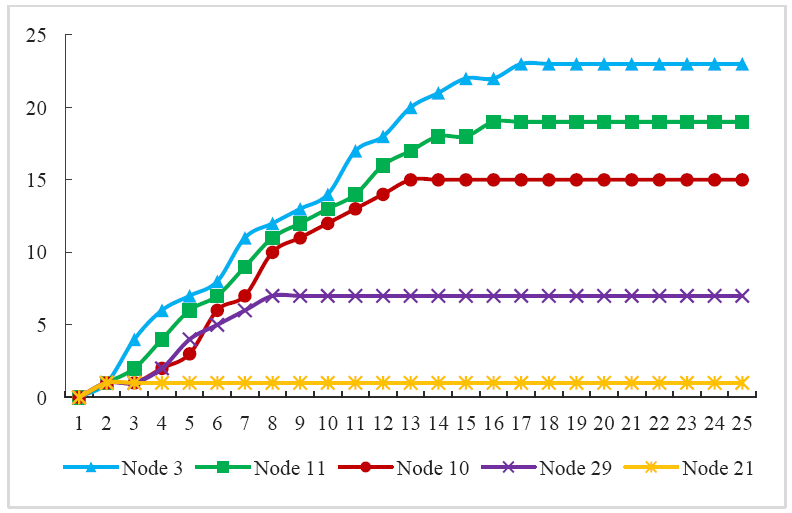

Figure 9

References 34

[1]	H. Ma, X. Chu, D. Xue, D. Chen , “Identification of to-be-improved Components for Redesign of Complex Products and Systems based on Fuzzy QFD and FMEA,”Journal of Intelligent Manufacturing, pp. 1-17, 2016 doi: 10.1007/s10845-016-1269-z
[2]	J. H. Shin, D. Kiritsis, P. Xirouchakis , “Design Modification Supporting Method based on Product Usage Data in Closed-loop PLM,” International Journal of Computer Integrated Manufacturing, Vol. 28, No. 6, pp. 551-568, 2015
[3]	I. Alloui, S. Cîmpan, H. Verjus , “Towards Software Architecture Physiology: Identifying Vital Components,” inProceedings of Software Architecture, WICSA 2008, Seventh Working IEEE/IFIP Conference on IEEE, pp. 293-296, 2008
[4]	H. B . Yan and T. Ma, “A Group Decision-Making Approach to Uncertain Quality Function Deployment based on Fuzzy Preference Relation and Fuzzy Majority,” European Journal of Operational Research, Vol. 241, No. 3, pp. 815-829, 2015 doi: 10.1016/j.ejor.2014.09.017
[5]	L. Akritidis, D. Katsaros, P. Bozanis , “Identifying the Productive and Influential Bloggers in a Community,” IEEE Transactions on Systems Man & Cybernetics Part C, Vol. 41, No. 5, pp. 759-764, 2011 doi: 10.1109/TSMCC.2010.2099216
[6]	W. J. Bai, T. Zhou, B. H. Wang , “Immunization of Susceptible-Infected Model on Scale-Free Networks,” Physica A Statistical Mechanics & Its Applications, Vol. 384, No. 2, pp. 656-662, 2007 doi: 10.1016/j.physa.2007.04.107
[7]	R. Pastorsatorras and A. Vespignani, “Immunization of Complex Networks,” Physical Review E Statistical Nonlinear & Soft Matter Physics, Vol. 65, No. 3, pp. 106-126, 2002
[8]	J. Liu, Q. Xiong, W. Shi, W. Shi, K. Wang , “Evaluating the Importance of Nodes in Complex Networks,”Physica A Statistical Mechanics & Its Applications, Vol. 452, pp. 209-219, 2016
[9]	P. Csermely, T. Korcsmáros, H. J. Kiss, G. London, R. Nussinov , “Structure and Dynamics of Molecular Networks: A Novel Paradigm of Drug Discovery: A Comprehensive Review,” Pharmacology & Therapeutics, Vol. 138, No. 3, pp. 333-408, 2013 doi: 10.1016/j.pharmthera.2013.01.016 pmid: 3647006
[10]	E. E. Karsak , “Fuzzy Multiple Objective Programming Framework to Prioritize Design Requirements in Quality Function Deployment,” Computers & Industrial Engineering, Vol. 47, No.2- 3, pp. 149-163, 2004
[11]	L. H . Chen and W. C. Ko, “Fuzzy Linear Programming Models for New Product Design Using QFD with FMEA,” Applied Mathematical Modelling, Vol. 33, No. 2, pp. 633-647, 2009
[12]	K. H . Chang and C. H. Cheng, “Evaluating the Risk of Failure using the Fuzzy OWA and DEMATEL Method,” Journal of Intelligent Manufacturing, Vol. 22, No. 2, pp. 113-129, 2011
[13]	B. Fan and G. Qi, “Modeling of Product Family Stricture and Module Analysis Method based on Complex Network,” Chinese Journal of Mechanical Engineering, Vol. 43, No. 3, pp. 187-186, 2007
[14]	Y. Li, Z. Wang, L. Zhang, X. Chu, D. Xue , “Function Module Partition for Complex Products and Systems based on Weighted and Directed Complex Networks,” Journal of Mechanical Design, Vol. 139, No. 2, pp. 021101, 2017
[15]	X. Lian, Y. Yang, J. Wang , “Research on Complex Product Design Change Propagation based on Complex Networks,” inProceedings ofInternational Conference on Industrial Technology and Management, IEEE, pp. 80-84, 2017 doi: 10.1109/ICITM.2017.7917900
[16]	W. Zhang, Q. Zhang, H. Karimi , “Seeking the Important Nodes of Complex Networks in Product R&D Team based on Fuzzy AHP and TOPSIS,”Mathematical Problems in Engineering, No. 1, 2013
[17]	Q. Li, T. Zhou, L. Lü, D. Chen , “Identifying Influential Spreaders by Weighted LeaderRank,” Physica A Statistical Mechanics & Its Applications, Vol. 404, No. 24, pp. 47-55, 2013 doi: 10.1016/j.physa.2014.02.041
[18]	R. Yang, B. H. Wang, J. Ren, W. J. Bai, Z. W. Shi, W. X. Wang , et al., “Epidemic Spreading on Heterogeneous Networks with Identical Infectivity,” Physics Letters A, Vol. 364, No.3- 4, pp. 189-193, 2006 doi: 10.1016/j.physleta.2006.12.021
[19]	L. Lv, D. Chen, X. L. Ren, Q. M. Zhang, Y. C. Zhang, T. Zhou , “Vital Nodes Identification in Complex Networks,”Physics Reports, Vol. 650, pp. 1-63, 2016 doi: 10.1016/j.physrep.2016.06.007
[20]	W. Chen, L. V. Lakshmanan, C. Castillo , “Information and Influence Propagation in Social Networks,” Synthesis Lectures on Data Management, Vol. 5, No. 4, pp. 1-177, 2013 doi: 10.2200/S00527ED1V01Y201308DTM037
[21]	R. Albert, I. Albert, G. L. Nakarado , “Structural Vulnerability of the North American Power Grid,” Physical Review E Statistical Nonlinear & Soft Matter Physics, Vol. 69, No.2, pp. 025103, 2004 doi: 10.1103/PhysRevE.69.025103 pmid: 14995510
[22]	F. Radicchi , “Who is the Best Player Ever? A Complex Network Analysis of the History of Professional Tennis,” Plos One, Vol. 6, pp. e17249, 2011 doi: 10.1371/journal.pone.0017249 pmid: 21339809
[23]	F. Radicchi, S. Fortunato, B. Markines, A. Vespignani , “Diffusion of Scientific Credits and the Ranking of Scientists,” Physical Review E-Statistical, Nonlinear and Soft Matter Physics, Vol. 80, No.5, pp. 056103, 2009 doi: 10.1103/PhysRevE.80.056103 pmid: 20365039
[24]	Y. B. Zhou, L. Lv, M. Li , “Quantifying the Influence of Scientists and their Publications: Distinguishing Between Prestige and Popularity,” New Journal of Physics, Vol. 14, No. 3, pp. 33033-33049, 2012
[25]	T. R. Browning , “Applying the Design Structure Matrix to System Decomposition and Integration Problems: A Review and New Directions,” IEEE Transactions on Engineering Management, Vol. 48, No. 3, pp. 292-306, 2002
[26]	A. Yassine and D. Braha, “Complex Concurrent Engineering and the Design Structure Matrix Method,” Concurrent Engineering, Vol. 11, No. 3, pp. 165-176, 2003
[27]	D. Tang, R. Zhu, J. Tang, R. Xu, R. He , “Product Design Knowledge Management based on Design Structure Matrix,” Advanced Engineering Informatics, Vol. 24, No. 2, pp. 159-166, 2010 doi: 10.1016/j.aei.2009.08.005
[28]	Y. Fu, M. Li, F. Chen , “Impact Propagation and Risk Assessment of Requirement Changes for Software Development Projects based on Design Structure Matrix,” International Journal of Project Management, Vol. 30, No. 3, pp. 363-373, 2012 doi: 10.1016/j.ijproman.2011.08.004
[29]	D. Chen, L. Lü, M. S. Shang, Y. C. Zhang, T. Zhou , “Identifying Influential Nodes in Complex Networks,” Physica A Statistical Mechanics & Its Applications, Vol. 391, No. 4, pp. 1777-1787, 2012
[30]	B. S . Brin and L. Page, “The Anatomy of a Large Scale Hypertextual Web Search Engine,” Computer Networks and ISDN Systems, Vol. 30, No. 1, pp. 107-117, 1998 doi: 10.1016/S0169-7552(98)00110-X
[31]	L. Lv, Y. C. Zhang, H. Y. Chi, Z. Tao , “Leaders in Social Networks, the Delicious Case,” Plos One, Vol. 6, No. 6, pp. e21202, 2011
[32]	M. Pinzger, N. Nagappan, B. Murphy , “Can Developer-Module Networks Predict Failures, ” in Proceedings of ACM SIGSOFT Symposium on the Foundations of Software Engineering, SIGSOFT’08,pp. 2-12, ACM Press, 2008
[33]	J. Xuan, H. Jiang, Z. Ren, W. Zou , “Developer Prioritization in Bug Repositories, ” in Proceedings of2012 34th International Conference on Software Engineering, ICSE’12,pp. 25-35, IEEE Press, 2012
[34]	Y. Li, Z. Wang, X. Zhong, F. Zou , “Identification of Influential Function Modules within Complex Products and Systems based on Weighted and Directed Complex Networks,”Journal of Intelligent Manufacturing, pp. 1-16, 2018 doi: 10.1007/s10845-018-1396-9

Connection type	Weight	Connection type	Weight
Electronic linkage	9	Bearing connection	9
Pin connection	5	Screw fastening	5
Threaded connection	5	Buckles connection	3
Slip connection	1	Gearing connection	1
Shaft lock connection	1	No connection	0

Geometric position	Weight	Geometric position	Weight
Contain	9	Surface contact	5
Line contact	3	Point contact	1
No contact	0

Node	Component	Node	Component
1	Rubber ring 1	16	Zoom button
2	Left casing protector	17	Lever
3	Movement	18	The trigger
4	Wire rack	19	Power connector
5	Channel components	20	Trigger spring
6	Left casing	21	Right hand
7	Left hand	22	Right casing
8	Capacitance	23	Ventilation network
9	PCBS	24	Rubber ring 2
10	Conductor	25	Right chassis cover
11	Heat-shrinkable tube R1	26	The base
12	Speed dial button	27	Hooks
13	Release button	28	Ram
14	Battery locking buckle	29	Battery pack
15	Battery pack latch spring	30	Heat contraction tube R2

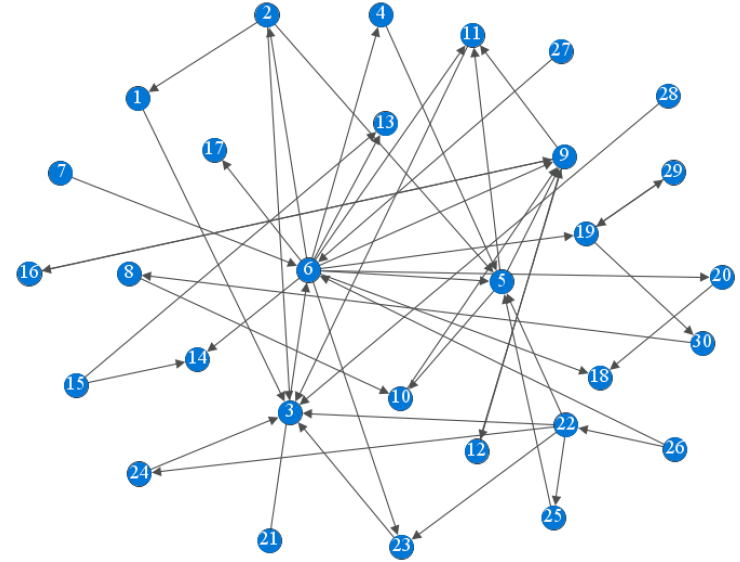

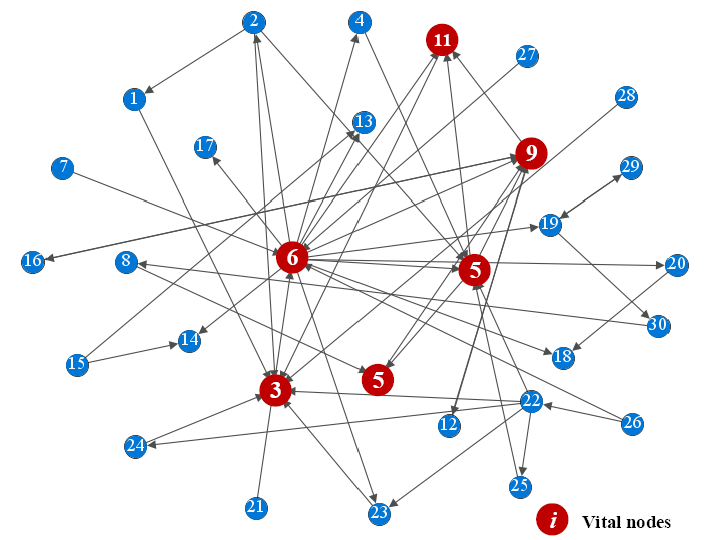

Node	LeaderRank Score	Node	LeaderRank Score
3	2.411425(Top 20%)	23	0.829938
9	2.253546 (Top 20%)	22	0.798697
11	1.465628 (Top 20%)	1	0.787491
6	1.312145 (Top 20%)	24	0.760664
5	1.278074 (Top 20%)	25	0.760664
10	1.233537 (Top 20%)	2	0.753872
12	1.162409	4	0.753872
16	1.162409	15	0.753872
19	1.041566	17	0.753872
8	0.972291	20	0.753872
18	0.959659	7	0.684597
29	0.917686	21	0.684597
30	0.917686	26	0.684597
13	0.891063	27	0.684597
14	0.891063	28	0.684597
