Finite Element Analysis and Evaluation of Bogie Frame for Passenger Locomotive based on Reliability

doi:10.23940/ijpe.19.01.p15.146155

Abstract

Abstract:

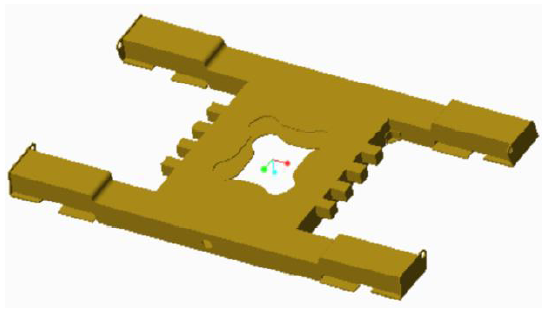

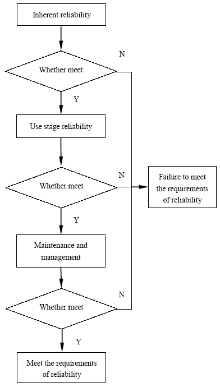

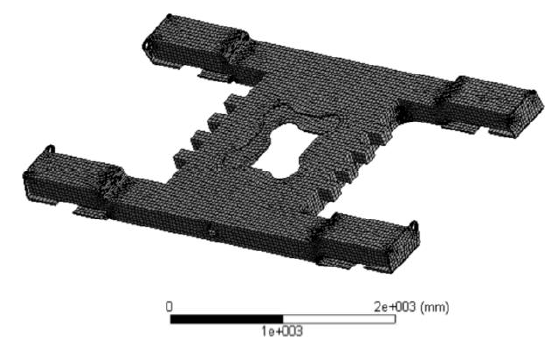

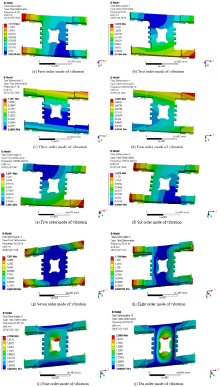

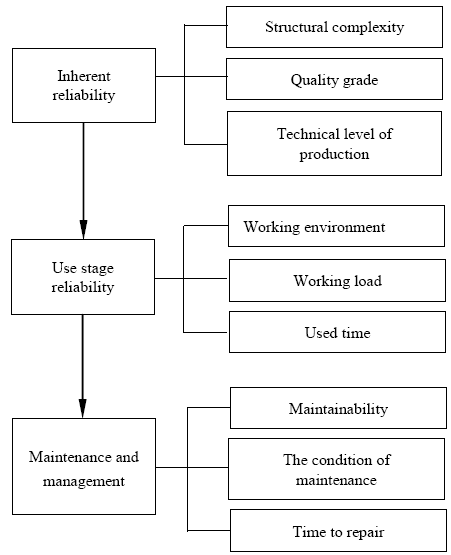

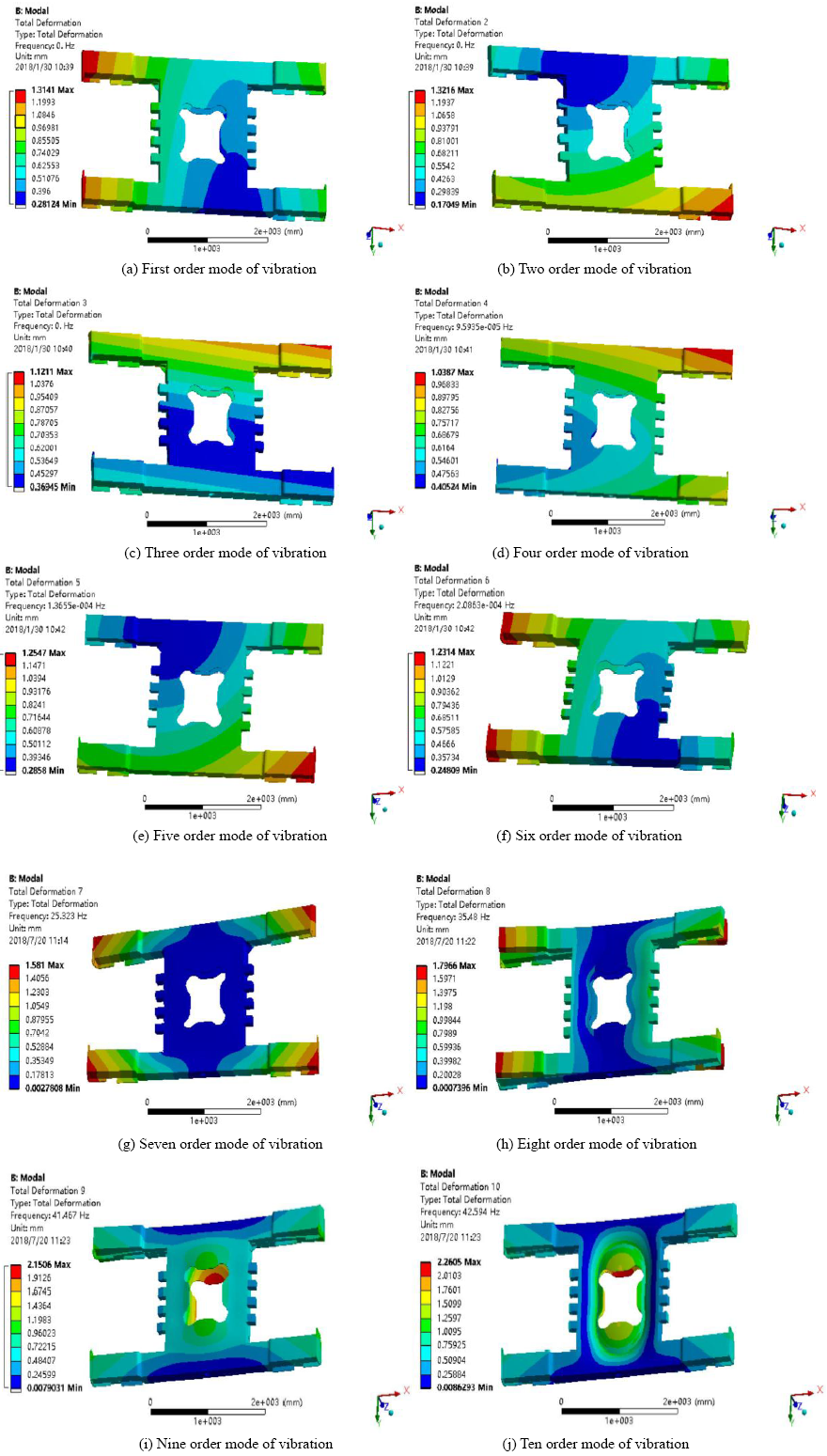

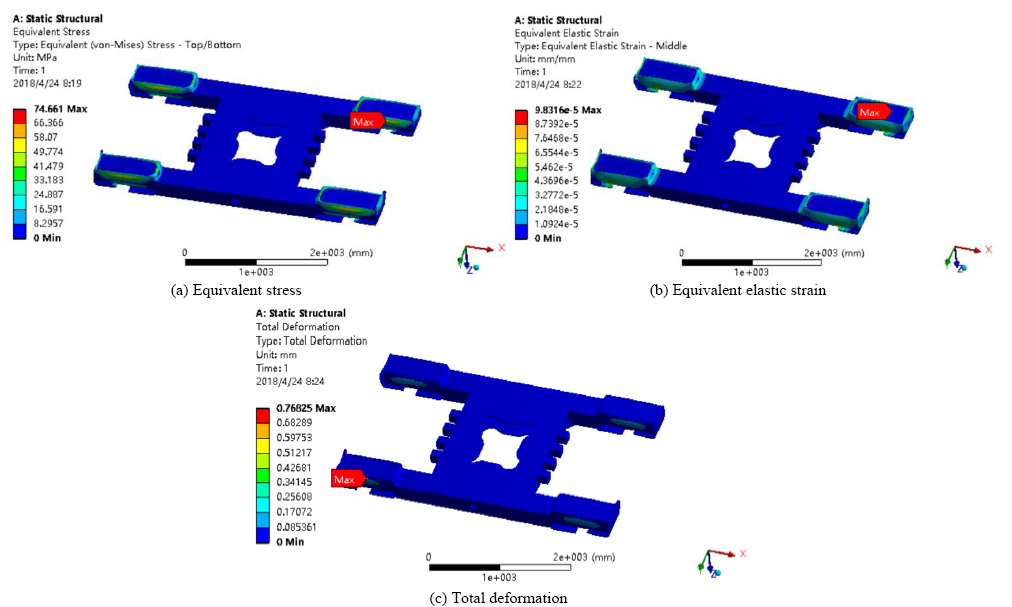

Passenger locomotives are developing rapidly in the direction of high speed, high power, energy saving, environmental protection, and light weight. In order to avoid locomotive failures such as fatigue fracture, the requirements for reliability and fatigue strength are becoming increasingly higher. The passenger locomotive running steadily and safely mainly depends on whether the design of the steering frame structure is reasonable. Based on the locomotive bogie by 3D solid modeling,the static strength and modal analysis of ANSYS finite element analysis software is applied to the reliability of the operation stage to make judgments and a reliability evaluation model frame is set up based on finite element analysis.

Key words: reliability, finite element analysis, static strength, fatigue damage, evaluation

Yanliang Wang, Junfang Xue, Xiufen Zhang, and Lichun Chen. Finite Element Analysis and Evaluation of Bogie Frame for Passenger Locomotive based on Reliability [J]. Int J Performability Eng, 2019, 15(1): 146-155.

Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

Figures/Tables 13

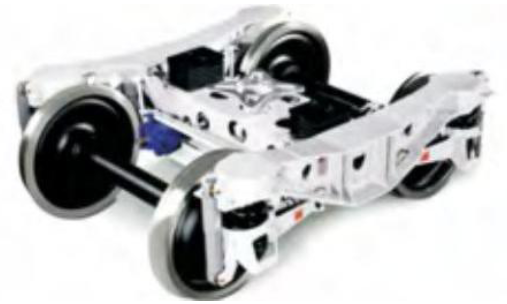

Figure 1

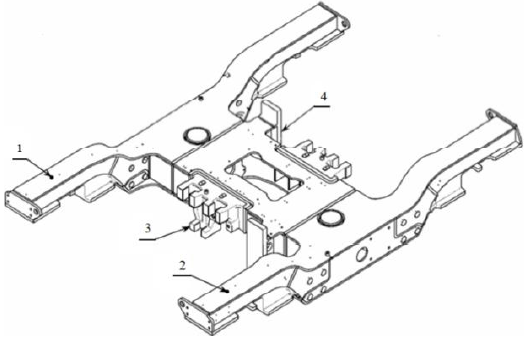

Figure 2

Table 1

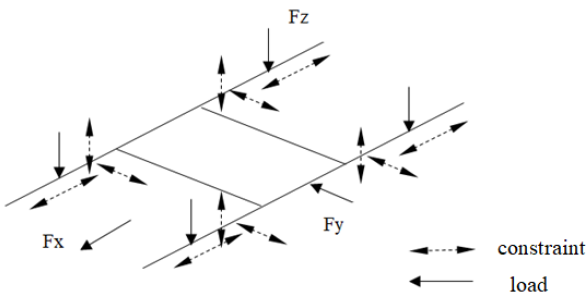

Figure 3

Table 2

Table 3

Figure 4

Figure 5

Figure 6

Figure 7

Figure 8

Figure 9

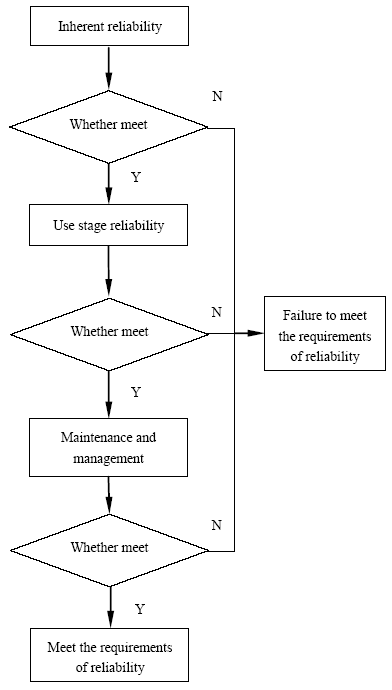

Figure 10

References 19

[1]	J. W. Wang and Z. G. Zhang, “The Foundation of Reliability Engineering,” Science Press,Beijing, China, August 2013
[2]	Y. M. Zhang , “Connotation and Development of Mechanical Reliability-based Design,” Journal of Mechanical Engineering, Vol. 46, No. 14, pp. 167-188, 2010
[3]	Y. M. Zhang , “Review of Theory and Technology of Mechanical Reliability for Dynamic and Gradual Systems,” Journal of Mechanical Engineering, Vol. 49, No. 20, pp. 101-114, 2013
[4]	H. B. Hu, W. D. Shao, S. F. Xu , “Technology Status and Development of Fast Freight Car Bogies at Home and abroad,”Railway Vehicle, No. 12, pp. 4-9, 2015
[5]	F. Guo, J. X. Guo, W. L. Zhang , et al., “Passenger Transport 160 km/h Electric Locomotive Bogie Frame Reliability Analysis,”Railway Locomotive and Motor Train, No. 6, pp. 29-32, 2016
[6]	J. Jia, T. Yang, Y. Yang , et al., “Research on Dynamic Programming of the Series Manufacturing System Reliability Allocation,”Journal of Convergence Information Technology, Vol.7, No. 7, pp. 17-25, 2012
[7]	D. W. Coit, Q. M. Feng, H. Peng , “Component Reliability Criticality or Importance Measures for Systems with Degrading Components,” IEEE Transactions on Reliability, Vol. 61, No. 1, pp. 4-12, 2012
[8]	Z. X. Du, Q. G. Hu, X. G. Zhu , “Modal Analysis of Bogie Frame of Cross Seat Monorail Vehicle,”Mechanical Design and Manufacture, No. 11, pp. 222-223, 2011
[9]	Q. Li, Y. M. Peng, M. Yang , “Static Strength and Fatigue Strength Analysis and Modal Analysis of Bogie Frame of 30t axle Load Electric Locomotive,”Railway Locomotive and Rolling Stock, No. 3, pp. 18-22, 2014
[10]	T. Li , “Optimization of High Speed AC Drives Co-Co Locomotive Steering Frame Optimization, ” Chengdu: Southwest Jiao Tong University, 2007
[11]	H. G. Cao, Z. J. He, and Z. Sun , “Journal of Mechanical Equipment Reliability Assessment of the Development and Thinking of,” Mechanical Engineering, Vol. 50, No. 2, pp. 171-186,2014
[12]	G. Q. Wang, Z. M. Wang, J. G. Yang , et al., “Reliability Assessment of Multiple NC Machine Tools with Minimal Repair,” Journal of Harbin Institute of Technology, Vol. 43, No. 7, pp. 127-130, 2011
[13]	Q. B. Hao , “Fuzzy Comprehensive Distribution and Prediction of Reliability and Maintainability of CNC Machine Tools,” Jilin University, Changchun, 2012
[14]	Y. Qin, K. Wang, H. X. Yin , “Reliability Analysis of Subway Vehicles based on the Data of Operational Failures, ” EURASIP Journal on Wireless Communications and Networking, Vol. 2017, No. 1, pp. 1-8, 2017 doi: 10.1186/s13638-017-0996-y
[15]	J. L. Wang , “Reliability Growth Design based on Reliability Allocation and Prediction for High Speed Precision Stamping Machine Tools,” Jilin University, Changchun, 2014
[16]	D. K. Liu, H. B. Lin, Q. Li , “Fatigue Reliability Model of Bogie Frame Structure for High Speed Train,”China Railway Science, No. 5, pp. 100-106, 2017 doi: 10.3969/j.issn.1001-4632.2017.05.14
[17]	F. Li, H. L. Li, S. P. Pan , “Low Dynamic Performance and Connection Reliability of New Truck Radial Bogies,”Journal of Transportation and Transportation Engineering, No. 5, pp. 39-46, 2013
[18]	S. Lin, W. T. Li, Y. Qin , “Research on Safety and Reliability Analysis and Evaluation Method of High-Speed Train System,”Electric Drive of Locomotive, No. 1, pp. 6-13, 2016
[19]	M. Karaulova, T. Kostina, E. Shevtshenko , “Reliability Assessment of Manufacturing Processes,” International Journal of Industrial Engineering and Management, Vol. 3, No. 3, pp. 143-151, 2012

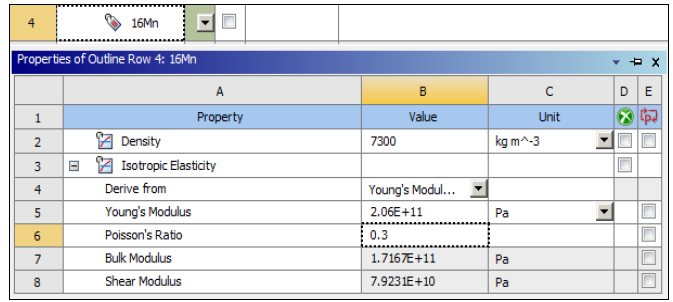

Material Properties	Value
Elastic Modulus (MPa)	2.06e+05
Poisson Ratio	0.3
Density (kg·m^-3)	7300
Yield Limit (MPa)	345

Parameter	Value
Gross rail load on Axle (t)	21
The weightof Bogie (t)	26
Weight with full Equipment(t)	138
Running Speed (km·h^-1)	200
Traction Force(kN)	285

Load type	Value
Vertical load (kN)	211
Lateral load(kN)	116
Longitudinal load(kN)	142
