Design and Realization of Reliability Enhancement Test for Breech Mechanism of Large-Caliber Guns

doi:10.23940/ijpe.19.01.p12.116126

Abstract

Abstract:

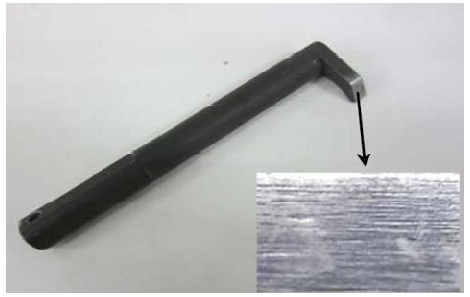

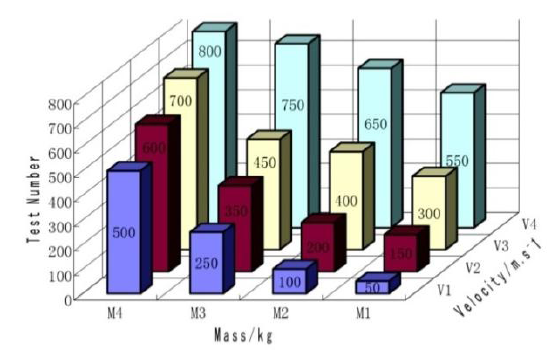

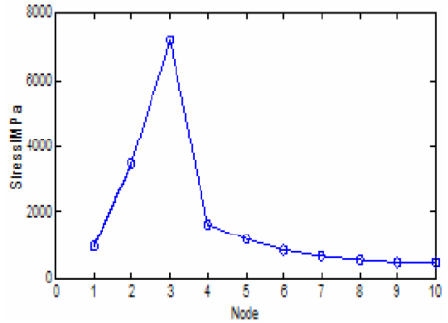

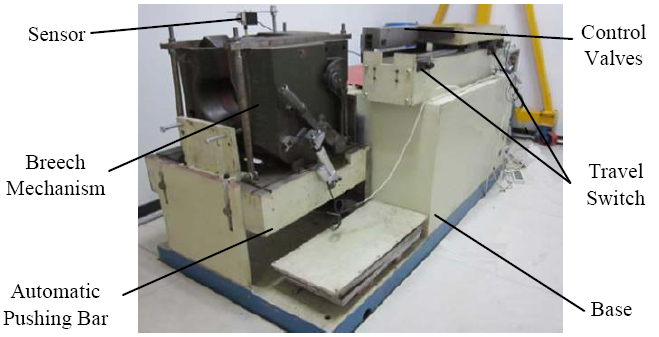

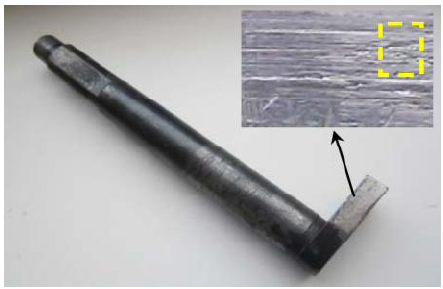

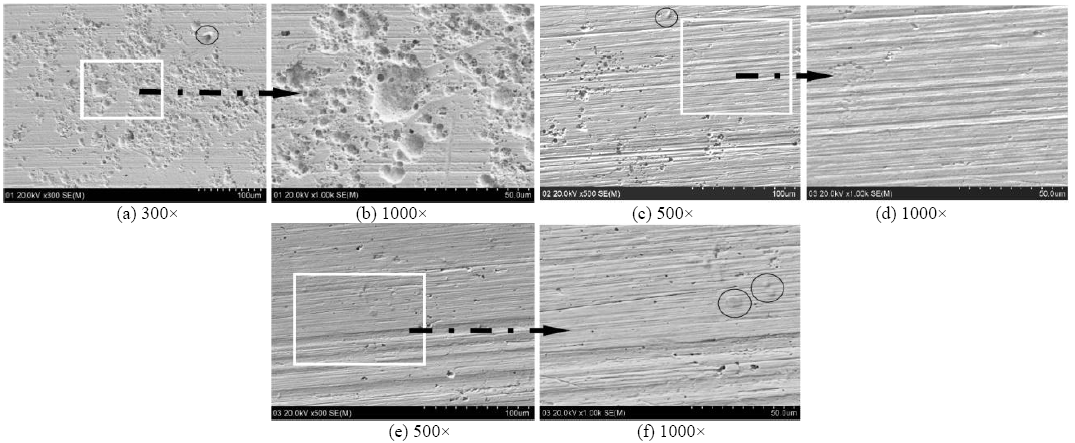

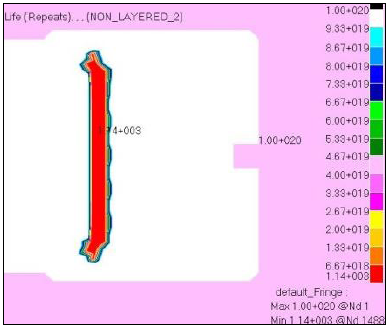

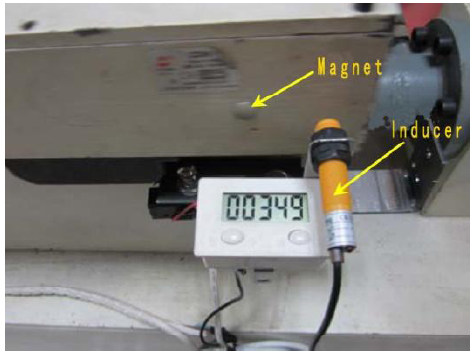

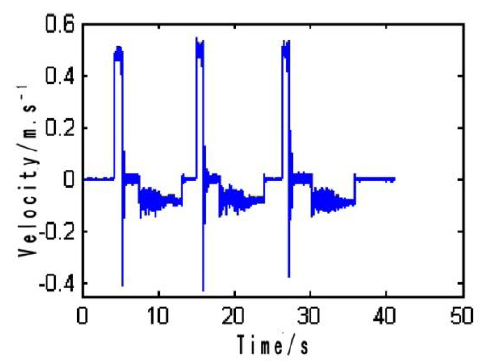

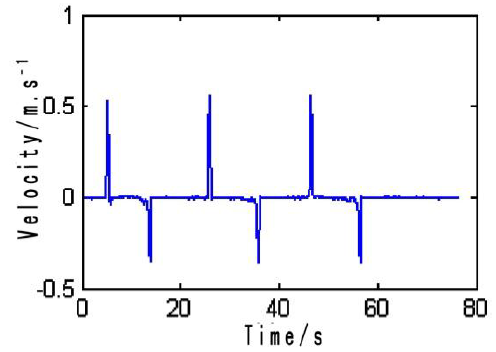

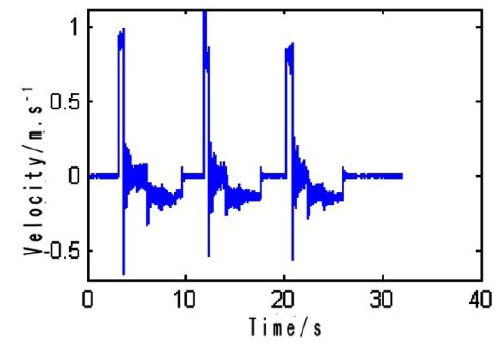

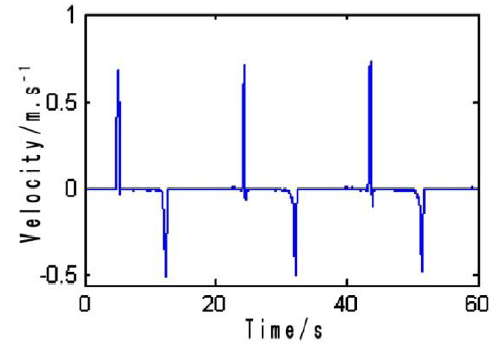

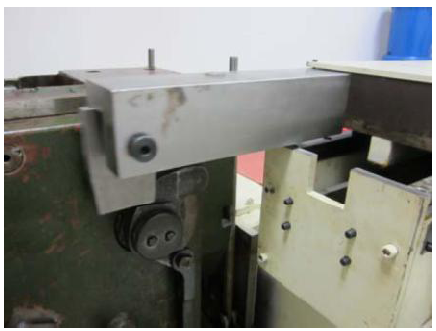

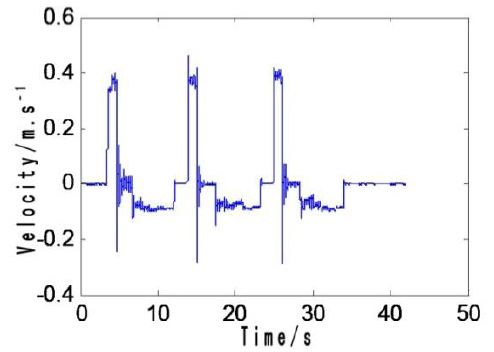

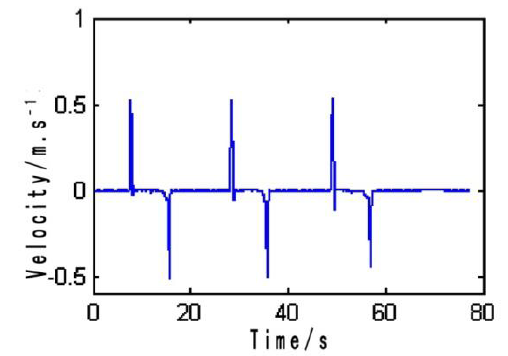

To address the issue that conducting a reliability enhancement test for large-caliber guns is impossible based on actual equipment, a new kind of enhancement test bed for the breech mechanism is designed and established. By measuring the extreme working stress of the test bed, enhancement test stress and enhancement stress levels are determined. The cross sections of single stress enhancement tests and comprehensive stress enhancement tests are designed. The cartridge extracting process is selected to excite the potential failures. The wear of the shaft arm of the shell stop and the wear of the arm of the cocking shaft are measured and analyzed based on finite element analysis and micro examination tests. The practical failure process is illustrated. Under the combined action of impact sliding coupling wear and abrasive particle wear, there are flakes, pan furrows, and holes on the part surfaces, which result in outline variation and force transmission failure. The research idea of this paper provides a new kind of failure mode analysis method for large-caliber guns.

Key words: reliability enhancement test, breech mechanism, wear, simulation

Lijun Cao, Tong Xu, Chao Ding, Guibo Yu, and Shuhai Wang. Design and Realization of Reliability Enhancement Test for Breech Mechanism of Large-Caliber Guns [J]. Int J Performability Eng, 2019, 15(1): 116-126.

Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

Figures/Tables 24

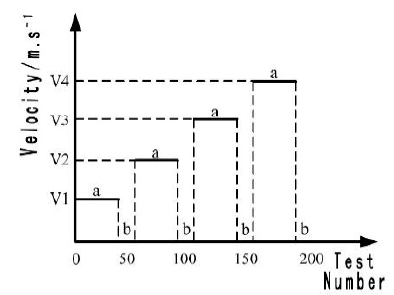

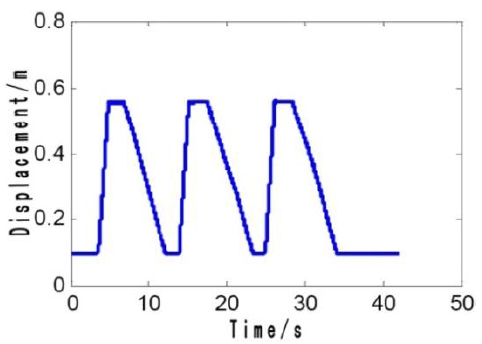

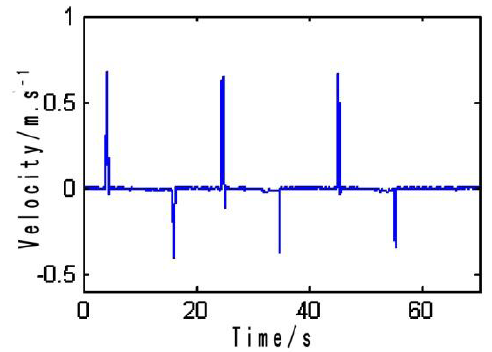

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

Figure 8

Figure 9

Table 1

Figure 10

Figure 11

Figure 12

Figure 13

Figure 14

Table 2

Figure 15

Figure 16

Table 3

Figure 17

Figure 18

Table 4

Table 5

Figure 19

References 16

[1]	X. J. Shao, Z. B. He, J. H. Liu, G. Tian , “Kinematic and Dynamic Simulation of Breech Mechanism based on Virtual Prototype,” Fire Control & Command Control, Vol. 39, No. 7, pp. 14-17, July 2014
[2]	S. H. Hu, M. H. Zhang, W. Fu, X. L. Liu , “Dynamic Characteristics of Extractor System in Artillery Vertical Wedge Breechblock,” Explosion and Shock Waves, Vol. 37, No. 2, pp. 221-228, March 2017 doi: 10.11883/1001-1455(2017)02-0221-08
[3]	Y. F. Yang, J. Zheng, C. C. Di, D. Wang , “Discussion on Reliability Enhancement Test Scheme of Gun Mechanical Systems,” Equipment Environmental Engineering, Vol. 13, No. 2, pp. 134-138, April 2016
[4]	Y. F. Yang, J. Zheng, C. C. Di, H. K. Wang, S. Wang , “Research on Reliability Enhancement Testing Technology of Breech Firing Mechanism,” Fire Control & Command Control, Vol. 41, No. 7, pp. 175-178, July 2016
[5]	M. Chao, P. Jing, M. Wei , “Study on Reliability Enhancement Testing for InSb Focal Plane Array Detector,” in Proceedings of the International Symposium on Photoelectronic Detection and Imaging, pp. 221-227, Beijing, China, August 2011 doi: 10.1117/12.900272
[6]	G. K. Hobbs , “Accelerated Reliability Engineering: HALT and HASS,” John Wiley and Sons Inc., San Francisco, 2000
[7]	Z. F. Fan, X. L. Qi, J. K. Liu , “Comprehension and Implementation of Reliability Enhancement Testing for Ammunition,” in Proceedings of the International Conference of Information Science and Management Engineering, pp. 347-350, Xiamen, China, November 2015 doi: 10.1109/ISME.2010.13
[8]	C.G. Guleryuz and J. E. Krzanowski, “Mechanisms of Self-Lubrication in Patterned TiN Coatings Containing Solid Lubricant Microreservoirs,” Surface and Coatings Technology, Vol. 204, No. 4, pp. 2392-2399, April 2014 doi: 10.1016/j.surfcoat.2010.01.012
[9]	H. Mclean , “The Application of Accelerated Testing Methods and Theory HALT, HASS and HASA,” QualMark Corporation, New York, 2000
[10]	Z. B. Cai, J. F. Peng, H. Qian, L. C. Tang, M. H. Zhu , “Impact Fretting Wear Behaviour of Alloy 690 Tubes in Dry and Deionized Water Conditions,” Chinese Journal of Mechanical Engineering, Vol. 30, No. 1, pp. 819-828, January 2017 doi: 10.1007/s10033-017-0147-8
[11]	G. Z. Pan, W. W. Liu, X. B. Li, J. F. Yang, T. Yuan, Z. T. Yuan , “Research on the Application of Reliability Enhancement Test Technology in Servo System,” Electronic Product Reliability and Environmental Testing, Vol. 36, No. 1, pp. 1-7, January 2018
[12]	H. F. Sun, H. F. Hu, S. L. Zhai, Z. Y. Song , “The Application of Reliability Enhancement Testing Technology in the Development of Aerospace Equipment,” Aerospace Control, Vol. 35, No. 5, pp. 92-97, May 2017
[13]	Y. Sato, A. Iwabuchi, M. Uchidate , “Dynamic Corrosion Properties of Impact-Fretting Wear in High-Temperature Pure Water,” Wear, Vol. 330, No. 1, pp. 182-192, January 2015 doi: 10.1016/j.wear.2014.11.029
[14]	L. Yang, M. Zhou, S. Chen , “Heat Transfer Enhancement with Mixing Vane Spacers using the Field Synergy Principle,” Chinese Journal of Mechanical Engineering, Vol. 30, No. 1, pp. 200-206, January 2016 doi: 10.3901/CJME.2016.0621.076
[15]	X. Y. Chen, J. P. Fan, X. Y. Bian , “Theoretical Analysis of Non-Probabilistic Reliability based on Interval Model,” Acta Mechanica Solida Sinica, Vol. 30, No. 2, pp. 638-646, February 2017
[16]	X. K. Wang, Z. W. Zhang, Y. L. Zhong , “Research on the Application of Reliability Enhancement Test in Electromechanical Products,” Electronic Product Reliability and Environmental Testing, Vol. 34, No. 5, pp. 51-56, May 2016

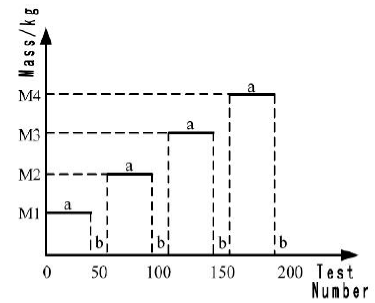

Test stress	Normal stress level	Enhancement stress level
Test stress	0	1	2	3	4
The driving mass (kg)	72.5	87.8	103.1	118.4	133.7
The driving velocity (m/s)	1.124	1.183	1.21	1.252	1.269

Item	Shaft arm of shell stop		Arm of cocking shaft
Item	Worn part	New part	Worn part	New part
Weight	213.01323	215.66747	228.03660	229.73337

Element	C	Si	Mn	Cr	Ni
Percentage composition	0.32~0.40	0.17~0.37	0.25~0.5	0.9~1.3	≤0.5
Element	Mo	Cu	P	S
Percentage composition	0.2~0.3	≤0.2	≤0.025	≤0.025

Test surface	1	2	3	4
Worn area	563.1	535.7	558.3	527.6
Unworn area	458.2	458.7	452.3	463.1
Test surface	5	6	7
Worn area	559.9	565.1	559.5
Unworn area	457.1	461.9	461.9
