Load Analysis and Calculation Optimization of Horizontal Axis Wind Turbine Blades

doi:10.23940/IJPE.18.12.P19.30983108

Abstract

Abstract:

In order to reduce the cost of wind turbines and boost their operation reliability, the aerodynamic load of wind turbine blade is analyzed by taking the key parameters of wind turbine blade airfoil and operation as design variables. According to the actual wind force and wind shear theory, the Planck loss factor is introduced based on the existing algorithm. The axial induction factor and tangential induction factor were modified, and the optimization algorithm of aerodynamic load of wind turbine blade was deduced. The feasibility of the algorithm is verified by simulation.

Key words: wind turbine, blade, load, optimization algorithm, simulation

Junxi Bi, Chenglong Zheng, Hongzhong Huang, Yan Zhou, and Xiaoxue Li. Load Analysis and Calculation Optimization of Horizontal Axis Wind Turbine Blades [J]. Int J Performability Eng, 2018, 14(12): 3098-3108.

Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

Figures/Tables 14

Table 1

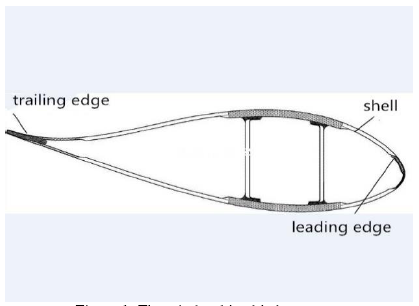

Figure 1

Table 2

Figure 2

Table 3

Table 4

Figure 3

Figure 4

Table 5

Figure 5

Figure 6

Figure 7

Table 6

Figure 8

References 27

[1]	S. Ahmad, E. H. Assad, M. Gath , “Aerodynamics Performance of Continuously Variable Speed Horizontal Axis Wind Turbine with Optimal Blades,” Energy,Vol. 77, No. 1, pp. 752-759, 2014 doi: 10.1016/j.energy.2014.09.048
[2]	J. Wiley and S. Ltd, “Aero Elastic Design of Large Wind Turbine Blades Considering Damage Tolerance,” Wind Energy, Vol. 20, No. 1, pp. 159-170, 2017
[3]	Y. J. Yin, M. F. Liao, P. Lu , “Analysis of Transient Response of Wind Turbine Blade based Timoshenko Beam,” Acta Energiae Solaris Sinica, Vol. 38, No. 9, pp. 2552-2558, 2017
[4]	J. C. Dai, S. H. Zhao, X. Y. Yin, D. S. Liu, Z. J. Wen , “Design and Optimization of Aerodynamic Shape and Operating Characteristics of Large Scale Wind Turbine Blade,” Journal of Mechanical Engineering,Vol. 51, No. 17, pp. 138-145, 2015 doi: 10.3901/JME.2015.17.138
[5]	X. Wang, J. F. Cao, T. G. Wang , “Investigation of Aerodynamic Performance and Wake of the Large Scale Wind Turbine in Complicated Conditions,” Journal of Computational Mechanics, Vol. 33, No. 3, pp. 343-550, 2016
[6]	N. X. Ren, W. Li, Y. G. Li , “Aerodynamic Load Analysis of Offshore Wind Turbine Blades During Typhoon,” Acta Energiae Solaris Sinica, Vol. 37, No. 2, pp. 322-328, 2016
[7]	J. Chen, X. F. Xiao, Z. Y. Sun, S. L. Li , “Optimization of Wind Turbine Thick Aerofoils Using Improved Multi-Objective Particle Swarm Algorithm,” Journal of North EasternUniversity (Natural Science), Vol. 37, No. 2, pp. 232-236, 2016 doi: 10.3969/j.issn.1005-3026.2016.02.018
[8]	C. L. Bottasso, F. Campagnolo, A. Croce, F. Gualdoni, M. B. Nielsen , “Structural Optimization of Wind Turbine Rotor Blades by Multilevel Sectional/Multibody/3D-FEM Analysis,” Multibody System Dynamics, Vol. 32, No. 1, pp. 87-116, 2014 doi: 10.1007/s11044-013-9394-3
[9]	Z.Z. Wang and C. L. Zhu, “Numerical Simulation for in-Cloud Icing of Three-Dimensional Wind Turbine Blades,” Simulation, Vol. 94, No. 1, pp. 31-41, 2018
[10]	Y. Q. Zheng, R. Z. Zhao, H. Liu , “Dynamic Response of Flexible Wind Turbine Blade,” Telkomnika-Indonesian Journal of Electrical Engineering, Vol. 11, No. 12, pp. 7052-7057, 2013
[11]	S. T. Ke, W. Yu, T. G. Wang , “Impact for Blade Position on Aerodynamic Performance of Wind Turbine System under Stopped Status,” Journal of Zhejiang University (Engineering Science), Vol. 50, No. 7, pp. 1230-1238, 2016
[12]	X. L. Li, J. G. Sun, N. Tao , “An Effective Method to Inspect Adhesive Quality of Wind Turbine Blades Using Transmission Thermography,” Journal of Non-Destructive Evaluation,Vol. 37, No. 2, pp. 32-38, 2018
[13]	R. Nijssen and D. Zarouchas, “Mechanical Behaviour of Thick Structural Adhesives in Wind Turbine Blades under Multi-Axial Loading,” Journal of Science and Technology, Vol. 30, No. 13, pp. 1413-1429, 2016
[14]	L. Wang, A. Kolios, T. Nishino , “Structural Optimization Vertical-Axis Wind Turbines Composite Blades based on Finite Element Analysis and Genetic Algorithm,” Journal of Wind Turbine Blades,Vol. 36, pp. 31-35, 2016
[15]	J. J. Lin, D. Tian, Y. Deng , “Flow Field Simulation and Optimization Design of Concentrated Wind Energy Device,” Acta Energiae Solaris Sinica, Vol. 37, No. 7, pp. 1891-1899, 2015
[16]	D. Tian, X. Guang, J. J. Lin , “Simulation and Experiment on Flow Field Characteristics of Concentrated Device of Concentrated Wind Energy Turbines in Wind Shear,” Transactions of the Chinese Society of Agricultural Engineering, Vol. 32, No. 15, pp. 83-85, 2016
[17]	Z. Zheng, J. W. Lu, Y. K. Liang , “Dynamic Modelling and Constant Power Control of Wind Turbines with Trailing-Edge Flaps,” Journal of Beijing University of Aeronautics and Astronautics, Vol. 43, No. 3, pp. 464-471, 2017
[18]	D. Y. Li, X. N. Wang, W. W. Mo, X. W. Zhang , “Analysis on the Influence of Dynamic Aerodynamic Loads and Component Vibration of Wind Turbine on Aero Elastic Characteristics,” Journal of Mechanical Engineering, Vol. 52, No. 14, pp. 165-173, 2016
[19]	J. Y. Yan, Q. M. Li, Z. X. Guo , “Puncture Position on Wind Turbine Blades and Arc Path Evolution under Lightning Strikes,” Materials and Design, Vol. 122, No. 1, pp. 197-205, 2017
[20]	L. Liu, K. Z. Shi, K. Yang, J. Z. Xu , “Effects of Wind Shear on Aerodynamic Loads of Wind Turbines,” Journal of Engineering Thermal Physics, Vol. 31, No. 10, pp. 1667-1170, 2015
[21]	H. Z. Huang, J. Qu, M. J. Zuo , “Genetic-Algorithm-based Optimal Apportionment of Reliability and Redundancy under Multiple Objectives,” IIE Transactions, Vol. 41, No. 4, pp. 287-298, 2009
[22]	X. Jin, H. Y. Xiong, Z. C. Xia, Y. L. He, J. Du , “Strategies Study Of Individual Variable Pitch Control for High-Power Wind Turbines in Full Load Cases,” Acta Energiae Solaris Sinica, Vol. 36, No. 1, pp. 14-19, 2015
[23]	D. T. Qin, F. P. Zhang, W. Y. Bai , “Dynamic Loads Calculation of the Drive-Train of the Wind Turbines in Different Operation in Conditions,” Acta Energiae Solaris Sinica, Vol. 36, No. 1, pp. 6-13, 2015
[24]	Z. Z. Zhao, J. R. Chen, T. G. Wang, T. Tao, C. Tian, Y. Zheng , “Effect Analysis of Disturbance Airflow on Pneumatic Attack Angle of Darrius-Type Wind Turbine,” Acta Energiae Solaris Sinica, Vol. 38, No. 2, pp. 444-449, 2017
[25]	S. T. Ke, W. Yu, T. G. Wang , “Wind-Included Vibration Response Analysis for a Large Wind Turbine Blade-Tower System based on Large Eddy Simulation,” Journal of Vibration and Shock, Vol. 36, No. 7, pp. 92-98, 2017
[26]	J. Chen, S. L. Li, Z. Y. Sun, G. Chen , “Integrated Design of Aerodynamic and Structural Performance for Wind Turbine Dedicated Aerofoil,” Journal of Jilin University (Engineering and Technology Edition), Vol. 46, No. 6, pp. 1940-1945, 2016
[27]	J. J. Lin, D. Tian, J. Chen, W. L. Wang, Y. Deng , “Flow Field Simulation Verification and Flanged Structure Optimized Design of Concentrated Wind Energy Device Diffuser,” Transactions of the Chinese Society of Agricultural Engineering, Vol. 33, No. 18, pp. 59-65, 2017

Province	Wind energy resources(MW)
Inner Mongolia	61780
Xinjiang	34330
Heilongjiang	17230
Gansu	11430
Jilin	6380
Hebei	6120
Liaoning	6060
Shandong	3940
Jiangxi	2930
Jiangsu	2380
Guangdong	1950
Zhejiang	1640
Fujian	1370
Hainan	640

r(m)	Torsion angle (^o)	Chord length (m)
4.5	20.00	1.630
5.5	16.30	1.597
6.5	13.00	1.540
7.5	10.05	1.481
8.5	7.45	1.420
9.5	5.85	1.356
10.5	4.85	1.294
11.5	4.00	1.229
12.5	3.15	1.163
13.5	2.60	1.095
14.5	2.02	1.026
15.5	1.36	0.955
16.5	0.77	0.881
17.5	0.33	0.806
18.5	0.14	0.705
19.5	0.05	0.545
20.3	0.02	0.265

Power	P=1.5MW
The rated wind speed	V=10m/s
Aerofoil	NACA4412 series
Blade length	R=3.2m
Blade number	B=3
Rated speed	n=20r/min
Cut - in wind speed	V₁=4m/s
Cut - out wind speed	V₂=25m/s
Air density	1.225kg/m³

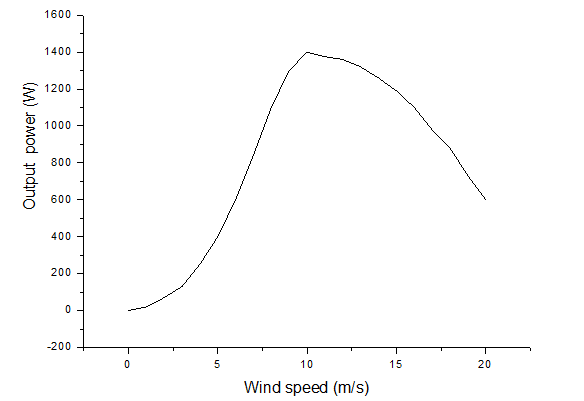

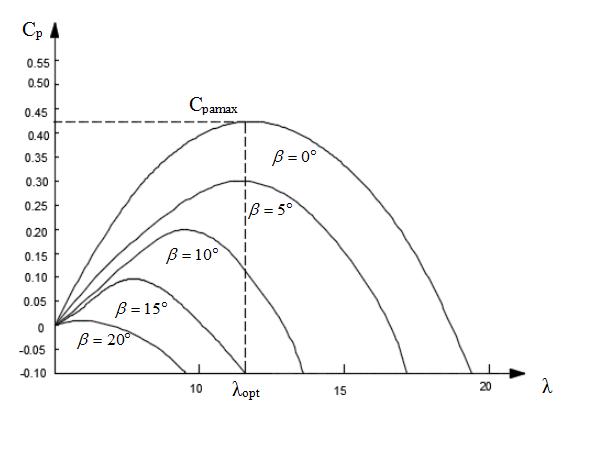

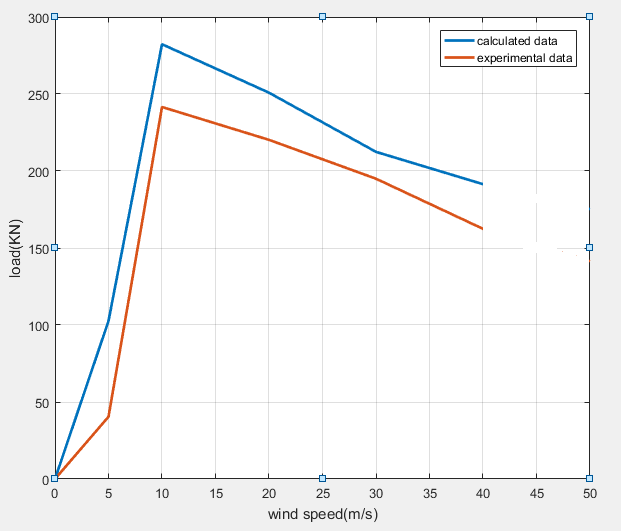

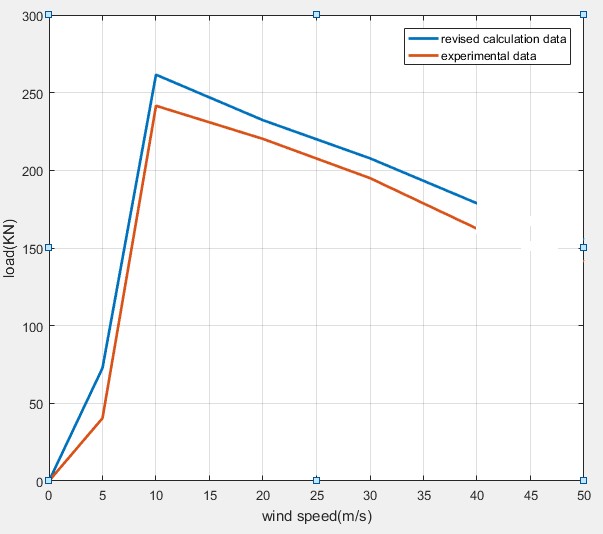

No.	The wind speed (m/s)	Blade loading (KN)
1	5	40.44
2	10	241.56
3	20	220.23
4	30	194.98
5	40	162.45

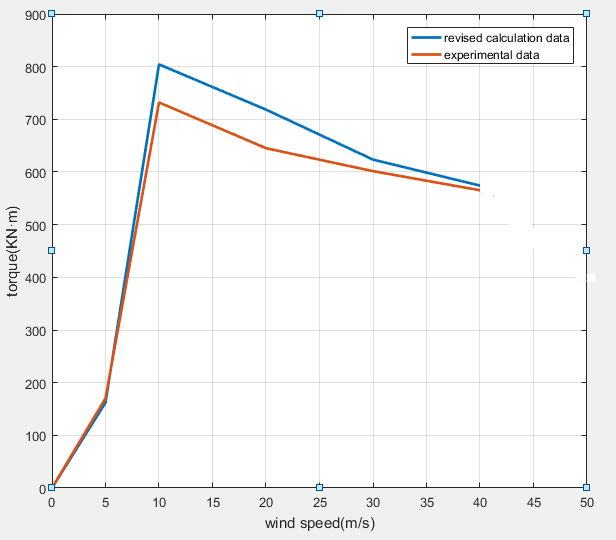

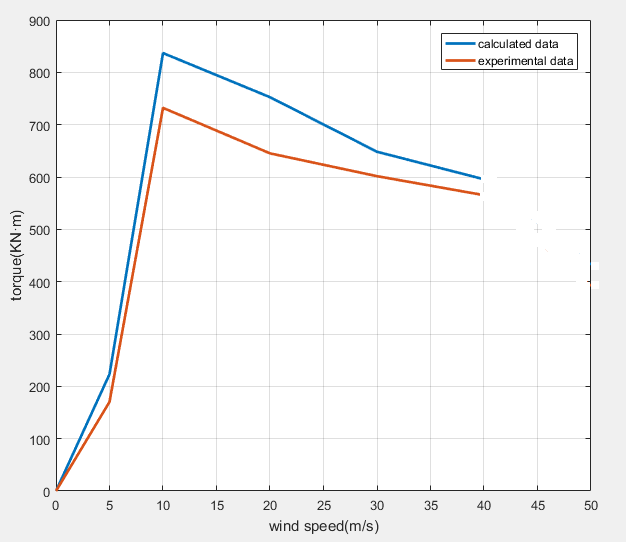

No.	Thewind speed (m/s)	The torque of the blade (KN·m)
1	5	170.26
2	10	732.12
3	20	645.17
4	30	601.57
5	40	565.28
