Int J Performability Eng ›› 2020, Vol. 16 ›› Issue (5): 691-701.doi: 10.23940/ijpe.20.05.p2.691701

• Orginal Article • Previous Articles     Next Articles

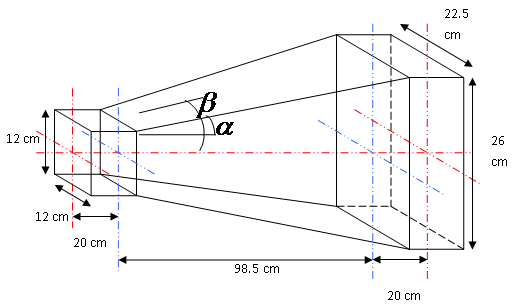

Design and Study of Performance Characteristics of Flat Wall Rectilinear 3D Diffuser with Square Inlet and Rectangular Outlet

Manish Kumara  and  Shailendra Kumarb*()

  1. aMechanical Engineering Department, Teerthanker Mahaveer University, Moradabad, (UP), 244001, India
    bMechanical Engineering Department, Meerut Institute of Engineering and Technology, Meerut, (UP), 250005, India
  • Submitted on ; Revised on ; Accepted on
  • Contact: Shailendra Kumar

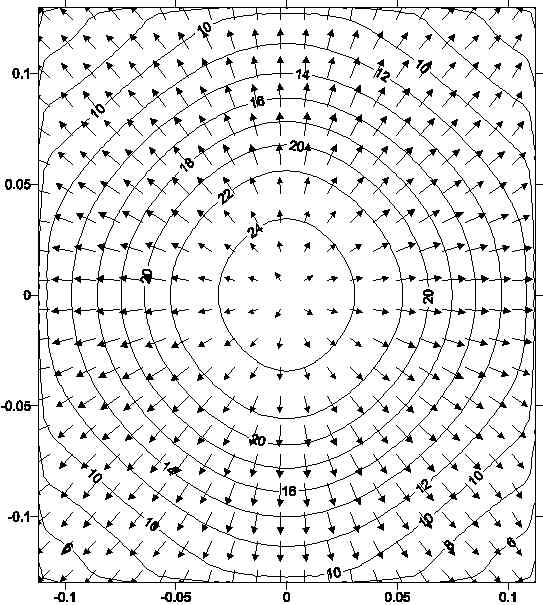

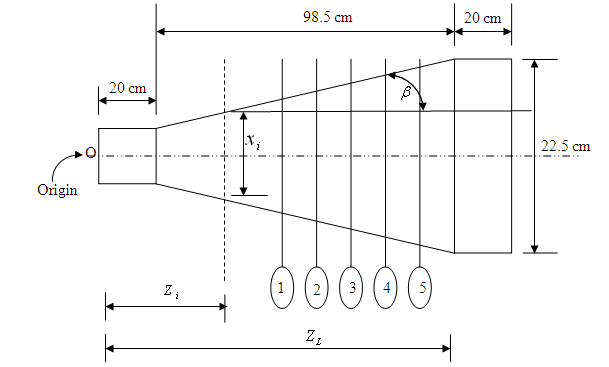

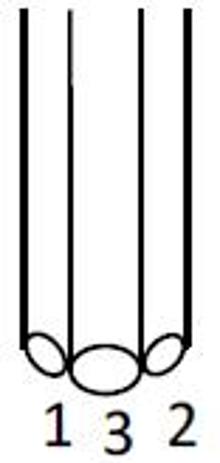

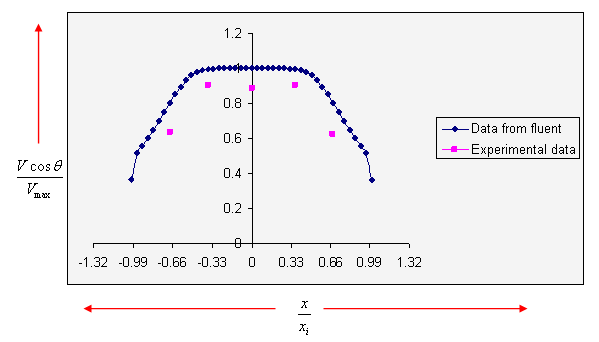

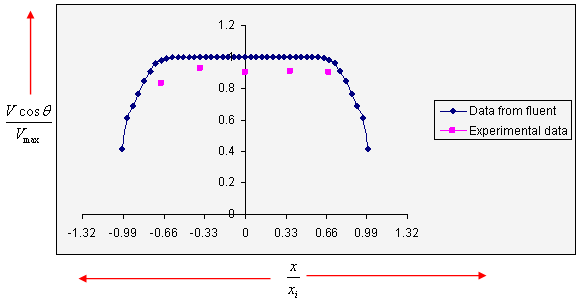

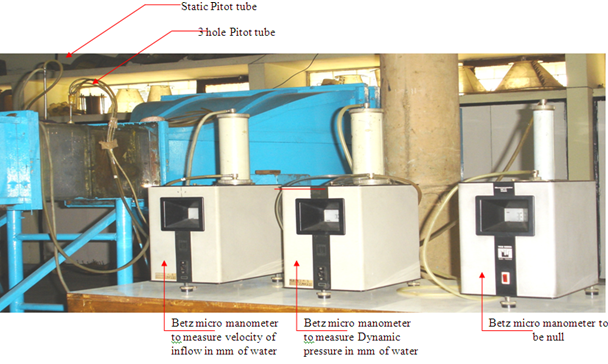

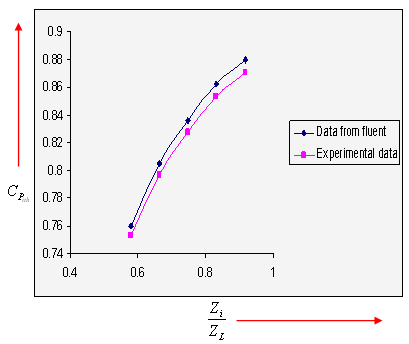

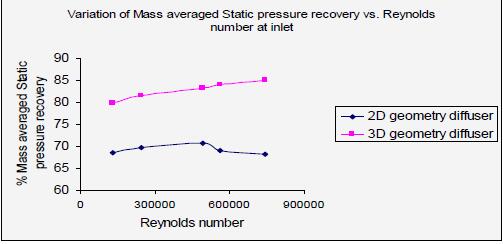

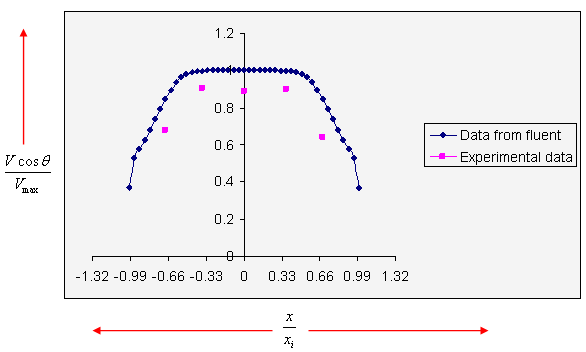

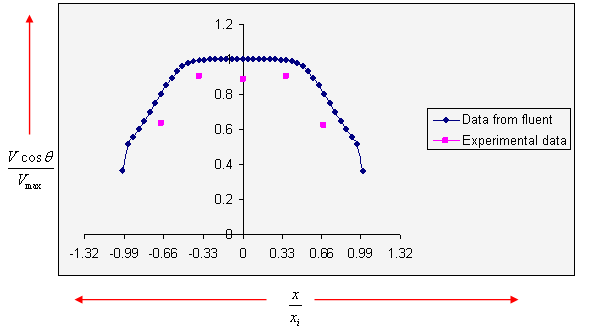

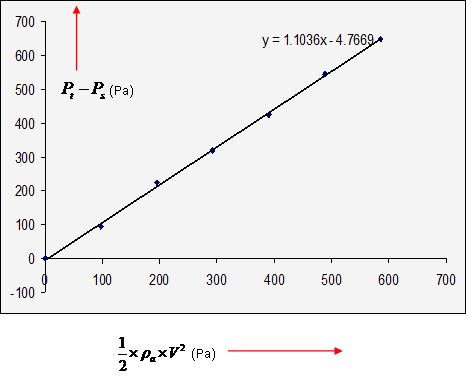

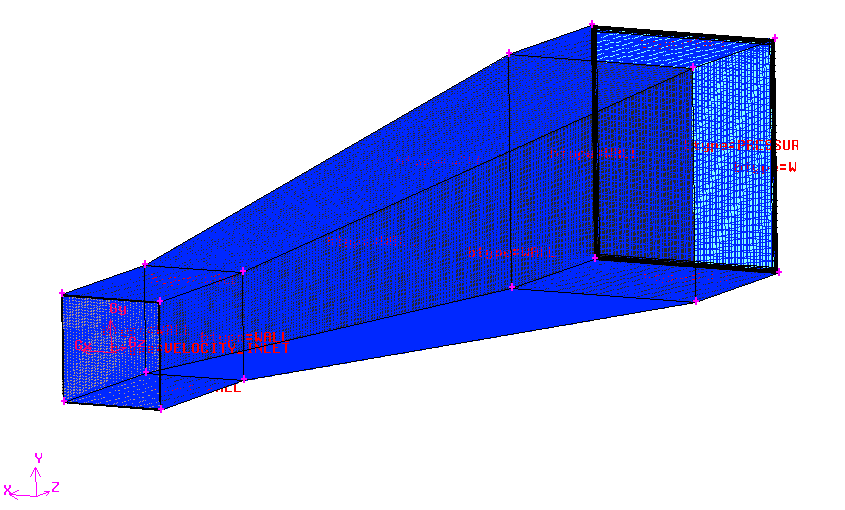

The present study explores the design of a flat wall rectilinear 3D diffuser with square inlet and a rectangular outlet for subsonic, incompressible flow. In this 3D diffuser, the diffuser walls are diverged in the horizontal plane to control the flow separation from the walls of the diffuser, which results in a decrease in the coefficient of static pressure recovery; this is a phenomenon called ‘stall’. In case of a wide angled 2D diffuser, 'stall' is a serious issue. In present work, a 3D diffuser was designed with the same area ratio (4), aspect ratio (1), and non-dimensional length (8.21) as those of a 2D diffuser. With varying Reynolds numbers, it was found that the coefficient of static pressure recovery increases continuously for the 3D diffuser. In case of the 2D diffuser, it decreases as the Reynolds number exceeds 2×105. From CFD analysis, it was found that vectors lie in the mid-longitudinal plane. A three-hole probe was used to measure local velocity to achieve velocity profiles at five different -2 equally distant planes between the inlet and outlet. The maximum error in the experimental results and that of the CFD analysis for the velocity profile and coefficient of static pressure recovery were 9% and 1.02%, respectively.

Key words: flat wall rectilinear 3D diffuser, stall, coefficient of static pressure recovery, CFD analysis, three-hole probe
