Effect of Vertical Magnetic Field on the Flow and Heat Transfer Characteristics of Conducting Gas in a Cylinder

doi:10.23940/ijpe.18.12.p21.31183128

Abstract

Abstract:

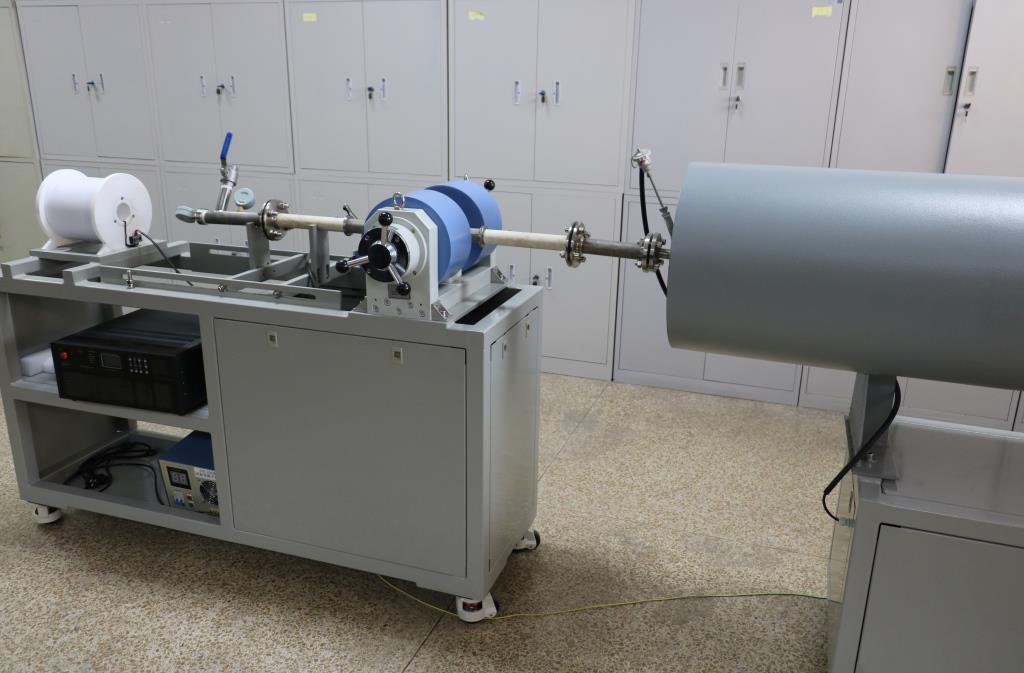

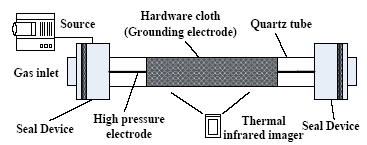

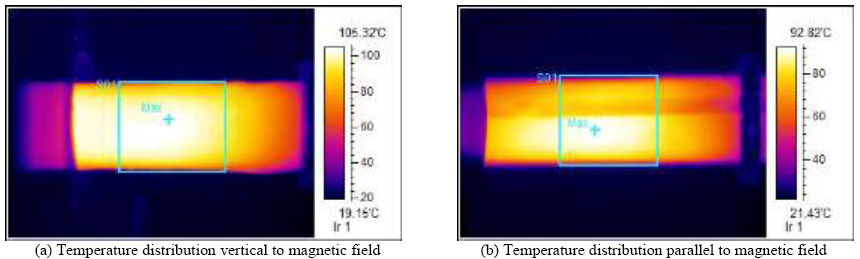

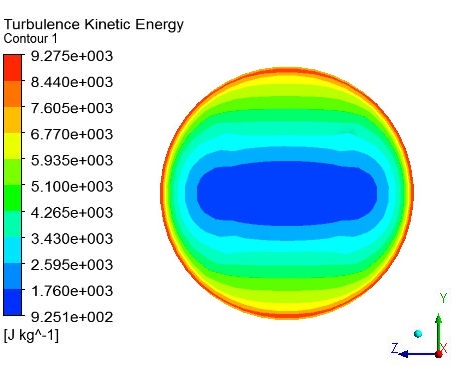

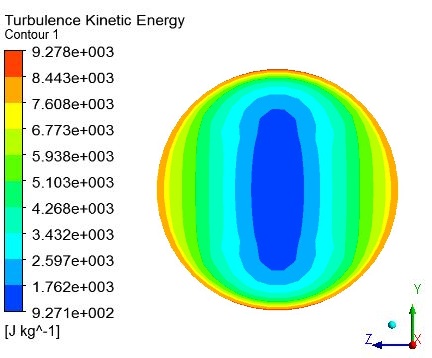

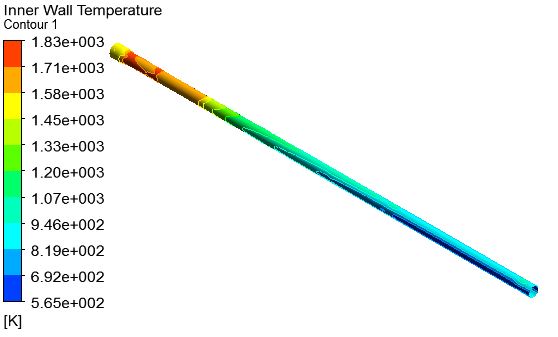

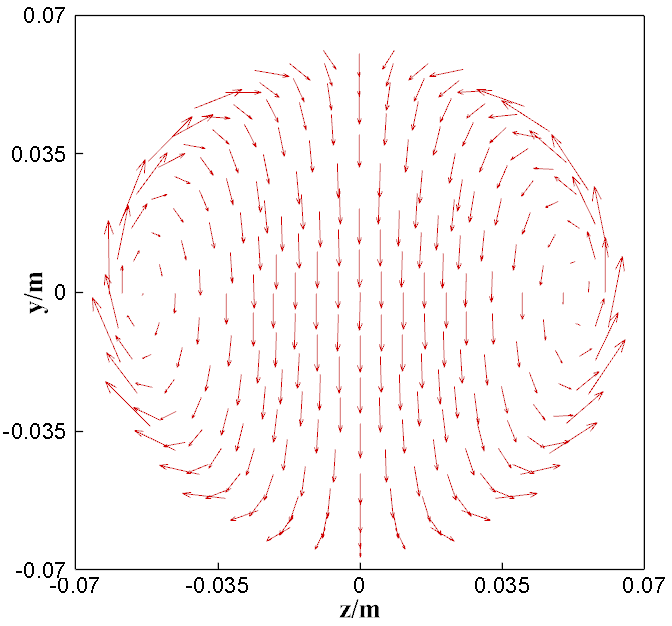

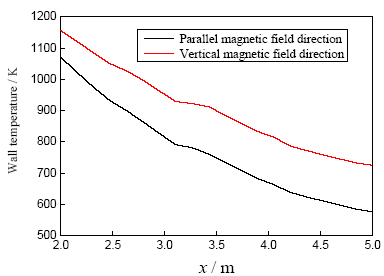

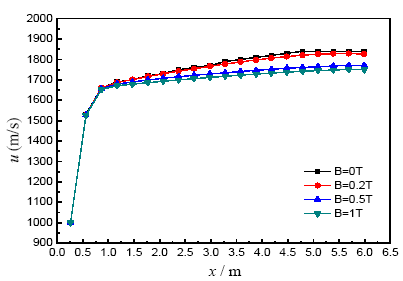

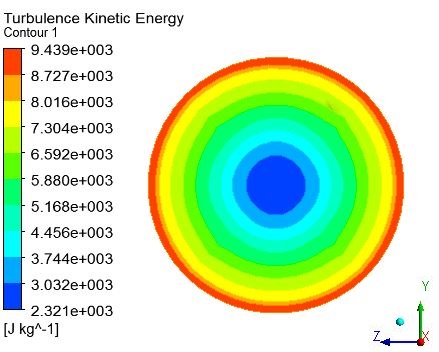

In order to solve the problem of serious ablation of weapon tubes, a method is presented to reduce ablation of high temperature gas on the barrel bore surface by application of magnetron plasma. The turbulent dissipation model of high temperature conducting gas in a cylinder structure is constructed by using the magnetic fluid description method. Numerical simulation of the flow and heat transfer characteristics of conductive gas in a cylinder are studied, along with the effects of different magnetic field directions on the wall temperature of the cavity. The effect of a vertical magnetic field on the heat transfer characteristics of the conductive gas is tested by infrared thermal imaging technology. The results show a that magnetic field can effectively reduce the turbulent kinetic energy of conductive gas, and its distribution has the characteristics of anisotropy. Turbulent kinetic energy along the magnetic field direction is significantly lower than that in the direction perpendicular to the magnetic field. The magnetic field perpendicular to the flow direction of the conductive gas can weaken its heat transfer capacity.

Key words: plasma, magnetic fluid, turbulent kinetic energy, heat transfer

Cheng Li, Baoquan Mao, and Xianghua Bai. Effect of Vertical Magnetic Field on the Flow and Heat Transfer Characteristics of Conducting Gas in a Cylinder [J]. Int J Performability Eng, 2018, 14(12): 3118-3128.

Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

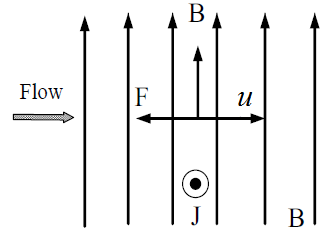

Figures/Tables 19

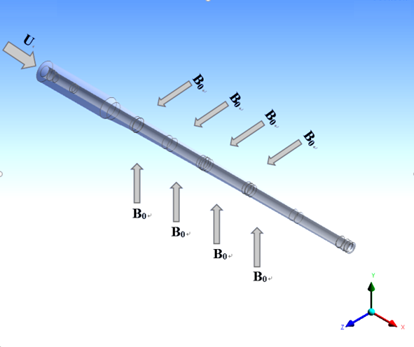

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

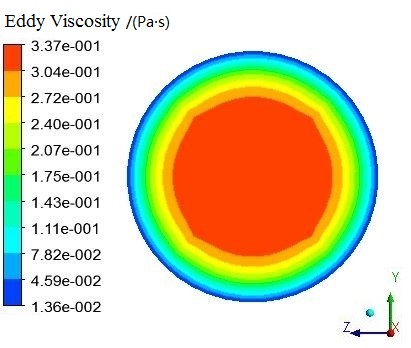

Figure 7

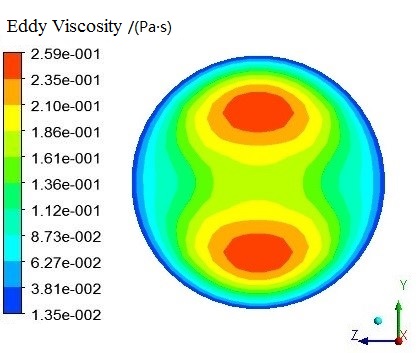

Figure 8

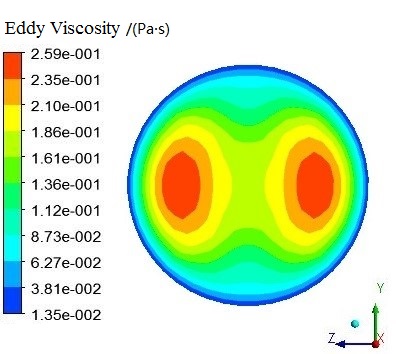

Figure 9

Figure 10

Figure 11

Figure 12

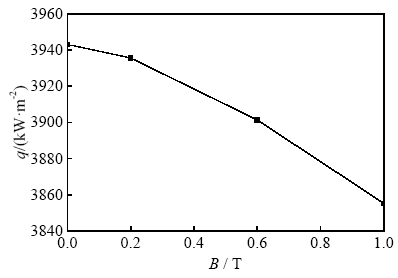

Figure 13

Figure 14

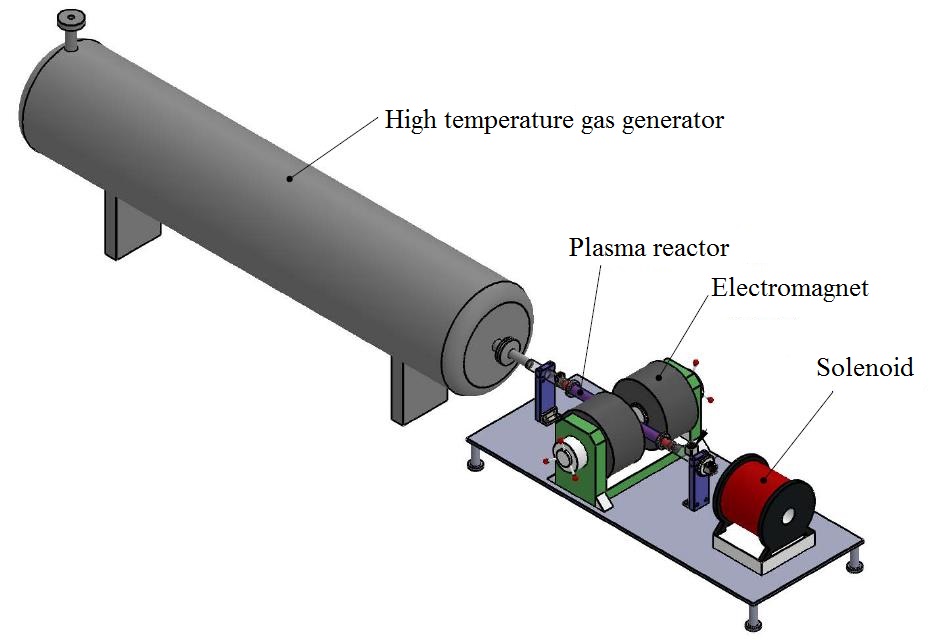

Figure 15

Figure 16

Figure 17

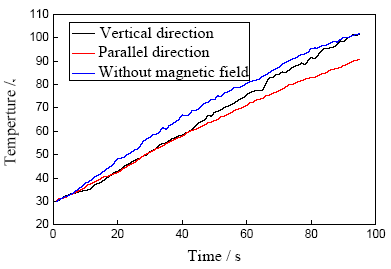

Figure 18

Table 1

References 17

[1]	T. Byvank, J. Chang, W. M. Potter , “Extended Magneto Hydrodynamic Plasma Jets with External Magnetic Fields,” IEEE Transactions on Plasma Science, Vol. 44, No. 4, pp. 638-642, 2016 doi: 10.1109/TPS.2016.2530634
[2]	V. A. Bityurin, A. N. Bocharov, J. T. Lineberry , “Studies on MHD Interaction in Hypervelocity Ionized Air Flow over Aero-Surfaces,” in Proceedings of 34th AIAA Plasmadynamics and Lasers Conference, pp. 4300-4303, June 2003
[3]	X. Cao, W. X. Zhao, R. X. Zhang , “Design of a MT-DBDReactor for H₂S Control,” Plasma Science and Technology, Vol. 19, No. 4, pp. 045501-045507, 2017 doi: 10.1088/2058-6272/aa57e8
[4]	V. S. Choudhary, U. Kalita, A. Pratap , “Performance Analyses of MHD Thruster Using CAE Tools,” International Journal of Scientific & Engineering Research, Vol. 6, No. 5, pp. 335-338, May 2015
[5]	J.F. Dietiker and K. A. Hoffmann , “Computations of Turbulent Magneto HydrodynamicFlows,” in Proceedings of 33rd Plasma Dynamics and Lasers Conference, May 2002 doi: 10.2514/6.2002-2141
[6]	P. Duan, A. N. Cao, H. J. Shen , “Effect of Electron Temperature on the Characteristics of Plasma Sheath in Hall Thruster,” ACTA Physica Sinica, Vol. 62, No. 20, pp. 20505-20510, 2013
[7]	B.C. Fang and G. Dong. , Turbulence Control Principle,” National Defence Industry Press, Beijing, 2011
[8]	M. Kim, M. Keidar, D. Boyd , “Electrostatic Manipulation of a Hypersonic Plasma Layer-Images of the Two-Dimensional Sheath,” IEEE Transactions on Plasma Science, Vol. 36, No. 4, pp. 1198-1199, 2008 doi: 10.1109/TPS.2008.926968
[9]	C.S. Olsen and M. G. Ballenger, “Investigation of Plasma Detachment from a Magnetic Nozzle in the Plume of the VX-200 Magnetoplasma Thruster,” IEEE Transactions on Plasma Science, Vol. 43, No. 1, pp. 252-268, 2015 doi: 10.1109/tps.2014.2321257
[10]	J.R. Richard and H. K. Charles, “Plasmas in MHD Power Generation,” IEEE Transactions on Plasma Science, Vol. 19, No. 6, pp. 1-15, 1991 doi: 10.1109/27.125040
[11]	Z.Y. Xie and L. Zhou, “Experiential Study on Propellant Driven Magnetohy Dynamic Generator,” Transactions of Beijing Institute of Technology, Vol. 31, No. 2, pp. 183-188, 2011
[12]	Z.Y. Zeng and M. D. Ma, “Analysis of Rifling Land Damage Mechanism of Gun Barrel,” Acta Armamentarii, Vol. 35, No. 11, pp. 1736-1742, 2014
[13]	X. B. Zhang , “Interior Ballistics of Guns, ” Institute of Technology Press, Beijing, 2014
[14]	Y. Zhang and H. L. Huan, “Influence of Magnetically Controlled Plasma on the Flow and Heat Transfer in a Circular Tube,” Journal of Nanjing University of Aeronautics & Astronautics,Vol. 40, No. 2, pp. 163-168, 2008
[15]	K. P. Zhang, Z. Y. Tian, D. H. Feng , “Numerical Study of Acceleration Deceleration Control of Three-Dimensional Magnetohydrodynamic Flow in Channel,” Acta Aerodynamica Sinica, Vol. 27, No. 4, pp. 474-479, 2009
[16]	H. Zhao and A. Y. Wei, “Velocity Fluctuations in the Near-Wall Region of the Turbulent Channel Flow,” Journal of Engineering Thermophysics, Vol. 37, No. 3, pp. 551-559, 2016
[17]	W. F. Zhu, Y. W. Wang, Y. H. Guo , “Temperature Simulation Calculation and Analysis of Influential Factors of a Certain Gun Barrel,” Journal of Gun Launch & Control,Vol. 37, No. 4, pp. 58-64, 2016

Time	Temperature/℃
Time	B=0T	B=0.25T	B=0.5T
0s	30.0	30.0	30.0
20s	48.3	46.9	43.9
40s	67.0	63.5	58.4
60s	80.5	75.6	73.6
80s	95.4	91.5	86.9
