Fuzzy Reliability Analysis and Optimization Design of Hydraulic System of Bale Carrier for Tie Arm Device

doi:10.23940/ijpe.19.02.p7.416430

Abstract

Abstract:

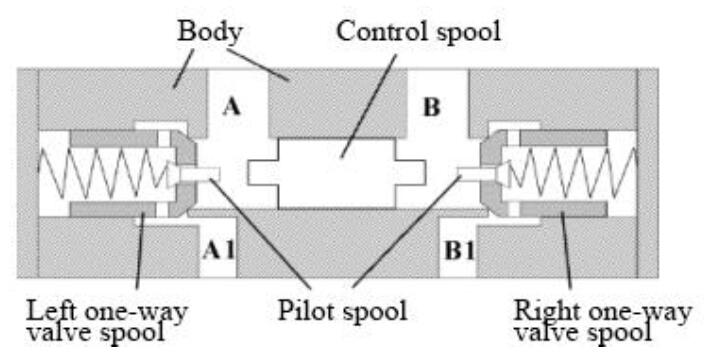

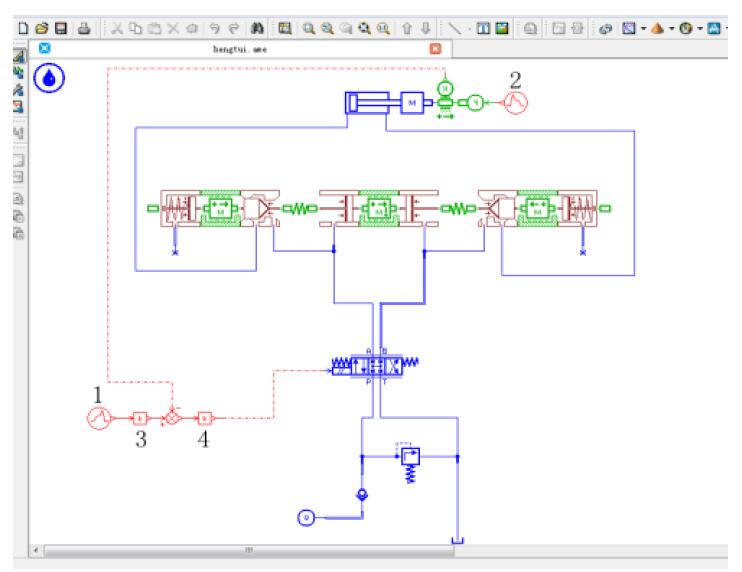

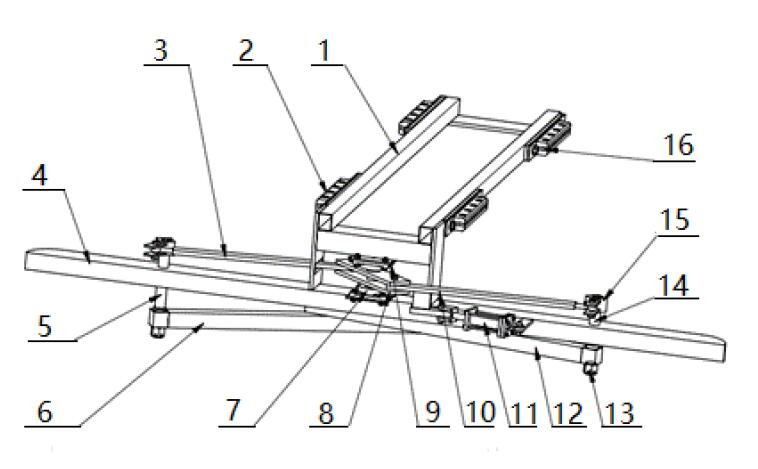

In order to realize the vertical and horizontal arrangement of square bales, the tie arm device adopts position feedback and hydraulic two-way lock loop for position control and position locking. The corresponding simulation model is established with AMESim software to verify the correctness of the model and to study the characteristics of the hydraulic control system. The fuzzy Failure Mode Effects and Criticality Analysis (FMECA) method is applied to the hydraulic system. According to the results of the hazard degree evaluation, the order of the hazard grade of each failure mode of the hydraulic system components is obtained and can be used for the reliability improvement and maintenance of the hydraulic system. The hydraulic control system is optimized by adjusting the parameters of several important influencing factors.

Key words: horizontal push device, hydraulic system, AMESim, fuzzy comprehensive evaluation, FMECA

Chenghui Pei, Xingyan Liu, Zhigang Liu, Tong Zhang, and Guoliang Li. Fuzzy Reliability Analysis and Optimization Design of Hydraulic System of Bale Carrier for Tie Arm Device [J]. Int J Performability Eng, 2019, 15(2): 416-430.

Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

Figures/Tables 18

Figure 1

Figure 2

Figure 3

Table 1

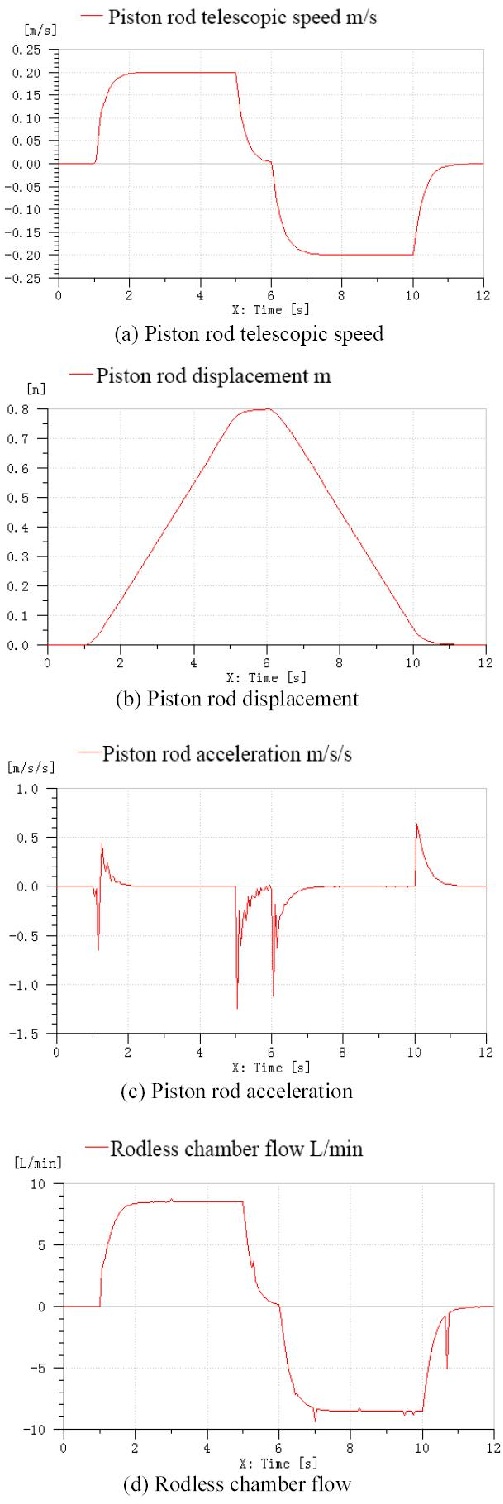

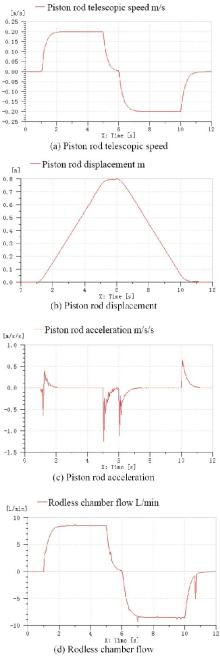

Figure 4

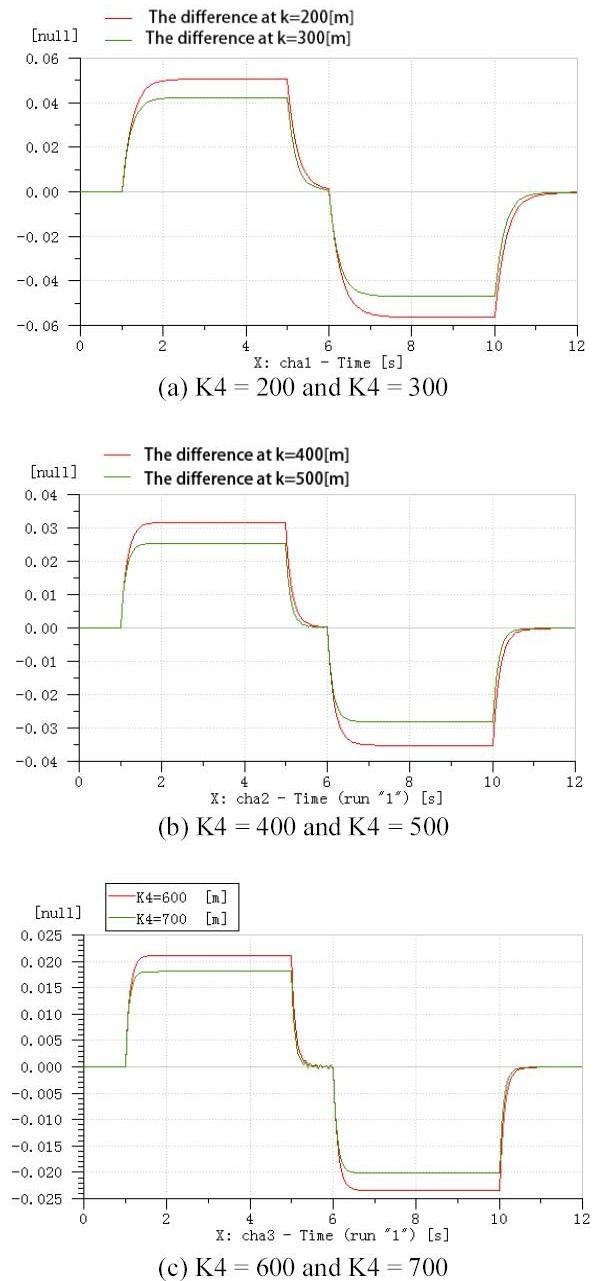

Figure 5

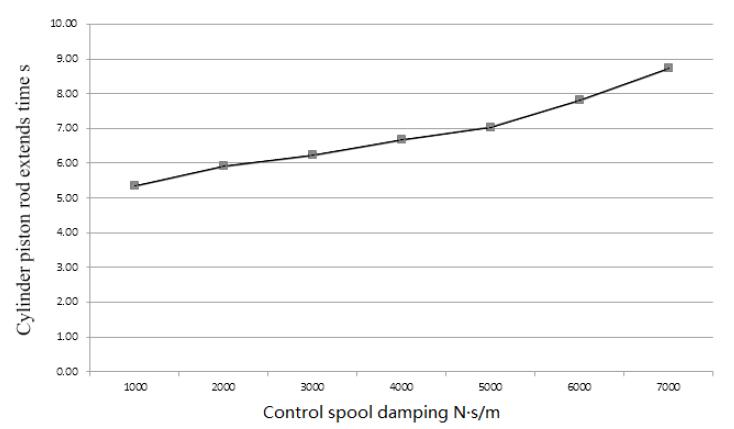

Figure 6

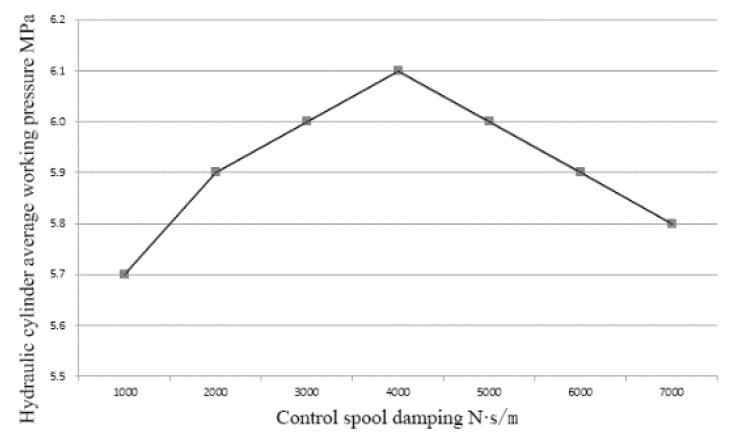

Figure 7

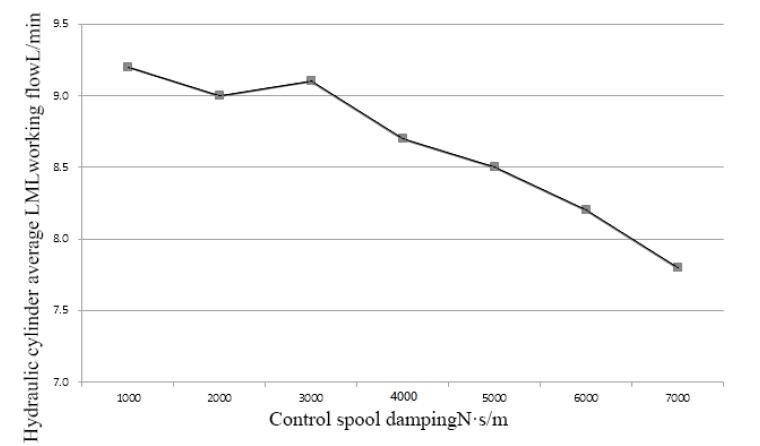

Figure 8

Figure 9

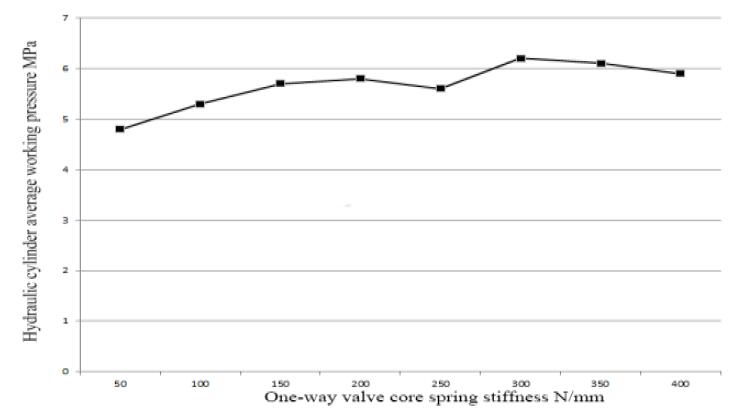

Figure 10

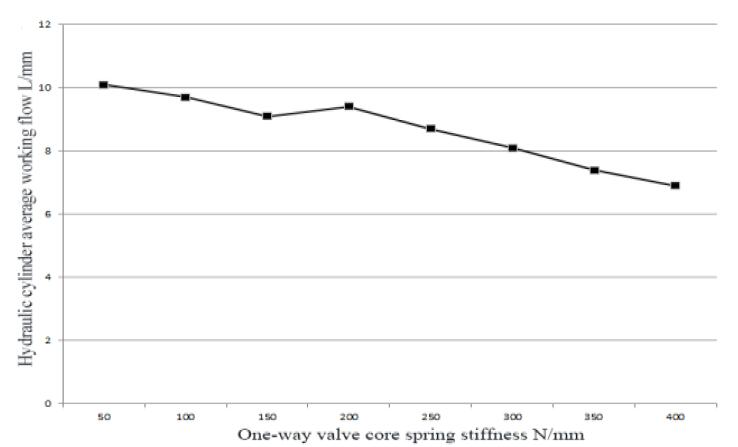

Figure 11

Figure 12

Table 2

AHP judgment matrix scale and its meaning"

$a ij$	Meaning
1	$u i is as important as u j$
3	$u i is slightly more important than u j$
5	$u i is obviously more important than u j$
7	$u i is more important than u j$
9	$u i is more important than u j$
one of 2, 4, 6, 8	$T he importance of u i to u j is between the$ $equivalents$

Table 2

Table 3

IR values of 1-13 order judgement matrix"

n	$I R$	n	$I R$
1	0.00	8	1.41
2	0.00	9	1.45
3	0.58	10	1.49
4	0.90	11	1.52
5	1.12	12	1.54
6	1.24	13	1.56
7	1.32

Table 3

Table 4

Hydraulic control system five parts FMECA table"

Product name	Sequence Number	Failure mode	Cause of issue	Local effects	High level impact	The final impact	Severity level	Take measures
Servo	1	Slow response, slow response	Reduced oil pressure	Cylinder instability	Corresponding push, dial action instability	Tie arm device stacking quality decline	Ⅲ level	Increase the pressure of oil supply
Servo	2	Vibration appears	The system gain is too high	Cylinder instability	Corresponding push, dial action instability	Tie arm device stacking quality decline	Ⅱ level	Reduce system gain
Hydraulic Cylinder	3	Leakage	Seal failure	Cylinder lack of thrust	Corresponding to push, dial performance decline	Tie arm device stacking quality decline	Ⅲ level	Replace the seal
	4	Internal leakage	Seals wear	Cylinder instability	Corresponding to push, dial performance decline	Tie arm device stacking quality decline	Ⅲ level	Replace the seal
	5	Crawl	Hydraulic cylinder accumulates air	Cylinder instability	Hydraulic cylinder life is reduced	Tie arm device stacking quality decline	Ⅲ level	Exhaust the air
	6	Lack of thrust	Frictional resistance is too large	Reduced effective traction cylinder	Corresponding push, dial action instability	Tie arm device stacking quality decline	Ⅲ level	Adjust the cylinder and piston with the gap
Check valve	7	Oil is not countercurrent	Check valve stuck	Valve does not work	Corresponding push, dial no corresponding action	Tie arm device to stop working	Ⅱ level	Demolition, cleaning valve
Directional valve	8	Commutation is not reliable	Spring deformation fracture	Cylinder instability	Corresponding push, dial action instability	Tie arm device stacking quality decline	Ⅱ level	Adjust the gap
Directional valve	9	Commutation moves slowly	Poor lubrication	Change the valve function	Corresponding push, dial action instability	Tie arm device stacking quality decline	Ⅲ level	Adjust the viscosity of the lubricant
Pipeline	10	Pipeline blocked	Oil pollution	Inadequate supply of oil	Cylinder instability	Tie arm device stacking quality decline	Ⅳ level	Filter oil impurities

Table 4

Table 5

Factor ranking table"

Influencing factors	Grade
Influencing factors	1	2	3	4
Failure probability level ( $u 1$ )	rarely happens	occasionally	occasionally happens	happens very often
Severity level ( $u 2$ )	slight influence	medium effect	tremendous influence	deadly impact
Detection level of difficulty ( $u 3$ )	accurate detection	not easy to detect	hard to detect	unable to detect
Maintenance level of difficulty ( $u 4$ )	simple debugging	re-install	replace parts	unable to repair

Table 5

Table 6

Failure mode 1 the relative importance and weight of each influencing factor"

Influencing factors	$u 1$	$u 2$	$u 3$	$u 4$
$u 1$	1	3	7	5
$u 2$	1/3	1	5	3
$u 3$	1/7	1/5	1	1/3
$u 4$	1/5	1/3	3	1

Table 6

References 20

1	M. S. Yang and J. M. Du, “Grassland Engineering Mechanics,” China Agricultural University Press, Beijing, 2013
2	S. D. Yang and G. X. He, “Hydraulic Transmission and Pneumatic Transmission,” Huazhong University of Science and Technology Press, Wuhan, 2008
3	J. Y.Zhao and Y. C. Yao , “Research Progress of Hydraulic System Reliability,”China Journal of Hydraulic Pneumatic and Sealing, No. 3, pp.50-52, 2006
4	C. L. Ao, X. Z. Zheng, Y. Z. Dai, et al., “Tractor Use Reliability Fuzzy Comprehensive Evaluation,”China Journal of Journal of Agricultural Mechanization, No. 4, pp.84-87, 2004
5	A. Z.Kellerc and K. Z. Beng , “Further Applications of Fuzzy Logic to Reliability Assessment and Safety Analysis,” Microelectronics Reliability, Vol. 29, No. 3, pp.399-404, 1989
6	A. C. F.Guimarães and C. M. F. Lapa , “Effects Analysis Fuzzy Inference System in Nuclear Problems using Approximate Reasoning,” Annals of Nuclear Energy, Vol. 31, No. 1, pp.107-115, 2004
7	J. B.Bowles and C. E. Pelaez , “Fuzzy Logic Prioritization of Failures in a System Failure Mode, Effects and Criticality Analysis,” Reliability Engineering & Systems Safety, Vol. 50, No. 2, pp.203-213, 1995
8	C. G. Dai, X. D. Wang, X. Zhang, L. Wang, “Fuzzy Comprehensive Evaluation in FMECA of Electro-Hydraulic Servo Valve”, China Journal of Journal of Beijing University of Aeronautics and Astronautics, Vol. 37, No. 12, pp.1575-1578, 2011
9	D. Chen, C. Yao, Z. Feng, “Reliability Prediction Method of Hydraulic System by Fuzzy Theory”, IFAC Proceedings Volumes, Vol. 46, No. 5, pp.457-462, 2013 doi: 10.3182/20130410-3-CN-2034.00009
10	P. Li, Z. H. Yuan, F. Su, “Reliability Analysis of Electrohydraulic Servo Actuator based on Fuzzy FMECA”, Machine Tools & Hydraulics, Vol. 41, No. 13, pp.178-182, 2013
11	Q. G.Hu and X. X. Shen , “Fuzzy Reliability Analysis in FMECA of Amphibious Armored Vehicle Hydraulic System,” China Journal of Machine tools and hydraulic, Vol. 45, No. 13, pp.16-173, 2017
12	Y. H.Liu and J. S. Chen , “Application of AMESim Simulation Technology in Design Analysis of Hydraulic System,”Hydraulics & Pneumatics, No. 11, pp.1-6, 2015
13	W. T. Shi, Y. Q. Lu, Y. Lu, et al, “Design and Simulation of Hydraulic Transmission of Potato Harvester based on AMESim”, Journal of Agricultural Mechanization Research, Vol. 40, No. 8, pp.254-257, 2018
14	K. Zhang, X. D. Huang, Z. F. Xie, M. Zhou, “Design and Optimization of a Novel Electrically Controlled High Pressure Fuel Injection System for Heavy Fuel Aircraft Piston Engine,” Chinese Journal of Aeronautics, 2018
15	L. Wang, P. Zhou, M. L. Xia, et al, “Structural Optimization and Simulation of Marine Hydraulic Damper based on AMESim,”Hydraulic & Pneumatics, No. 6, pp.94-98, 2018
16	Z. Zhou, D. Z. Ma, X. Y. Yu, et al, “Application of Fuzzy FMECA in Analysis of Product Reliability”, China Journal of Electric Machines and Control, Vol. 14, No. 10, pp.89-94, 2010 doi: 10.1109/CCECE.2010.5575154
17	V. R. Renjith, M. J. Kalathil, P. H. Kumar, D. Madhavan, “Fuzzy FMECA (Failure Mode Effect and Criticality Analysis) of LNG Storage Facility,”Journal of Loss Prevention in the Process Industries, Vol. 56, pp.537-547, 2018
18	S. Carpitella, A. Certa, J. Izquierdo, C. M. L. Fata,“A Combined Multi-Criteria Approach to Support FMECA Analyses: A Real-World Case,”Reliability Engineering & System Safety, pp. 169,2018
19	Y. Wang and B. Cheng, “Fuzzy FMECA based on Common Faults of Wind Turbine Generator,” Power System Protection & Control, 2018
20	B. Goo, J. Lee, S. Seo, D. Chang, H. Chung, “Design of Reliability Critical System using Axiomatic Design with FMECA,” International Journal of Naval Architecture & Ocean Engineering, 2017 doi: 10.1016/j.ijnaoe.2017.11.004

Parameters	Unit	Value
Fuel flow	L/min	35
Safety valve opening pressure	MPa	10
Hydraulic oil temperature	Degc	40
Hydraulic oil density	kg/m³	850
Directional valve to open the current	Ma	200
Directional valve natural frequency	Hz	50
Gain signal 1 value		10
Gain signal 2 value		250
Control valve core displacement limit	M	±0.0045
Control spool damping	N/m/s	1000
Conical valve taper	Degree	60
One-way valve core quality	kg	0.068
Check valve limit displacement	M	±0.00628
One-way valve core spring stiffness	N/mm	130
Horizontal push cylinder piston rod diameter	mm	56
Horizontal push hydraulic cylinder diameter	mm	80
Displacement sensor output signal gain	1/m	10
