Reliability Analysis of the CAM on the Drive Gear Plate of D Type Knotter

doi:10.23940/ijpe.19.01.p3.2334

Abstract

Abstract:

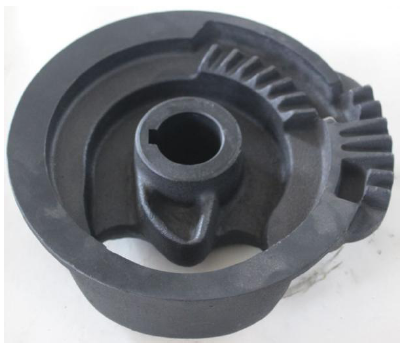

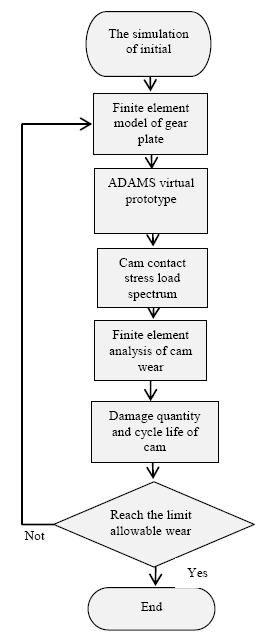

Camsof drive gear platesare key components of D type knotters.Wearis the main failure mode of cams. Accordingly, this paper studies the relationship between cams’ wear andthe reliability of a knot that is equippedin a D type knotter. Based on the theoretical and motional wear analysis of the cam mechanism assembledin a drive gear plate of a D type knotter, the mathematical relationship between cam wear and the displacement reliability of the cam follower is established. Moreover, the displacement reliability of the cam follower is calculated by joint simulation of the ADAMS virtual prototype and ANSYS. The followingconclusions are reached after a considerable number of simulations: (1)Thecam mechanism works at thestable wear stage at the time of design life. (2) The D type knotter will be unable to successfully tie knots anymore when the wear volume of the cam and contact surface of the follower reaches 2.3mm (the cam follower displacement reliability is 0.9463). (3)99% displacement reliability of the cam follower, at a workload of 20000 bales,requiresthe mean wear of the cam contact surfaceto be less than 0.87mm. A further conclusion is that maintenance and replacement measures are suggested to be taken at a workload of 20000 bales,to ensure that the displacement reliability of cam follower ismore than 99% andthe D type knot isworkable.

Key words: D type knotter, drive gear plate, cam, wear and tear, displacement reliability

Haitang Cen, Peiwen Li, Ruitao Wei, and Xueke Si. Reliability Analysis of the CAM on the Drive Gear Plate of D Type Knotter [J]. Int J Performability Eng, 2019, 15(1): 23-34.

Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

Figures/Tables 15

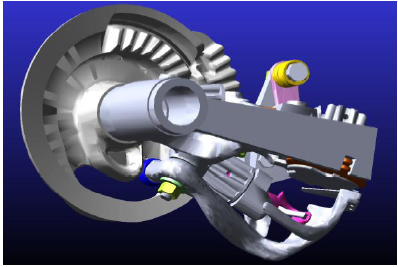

Figure 1

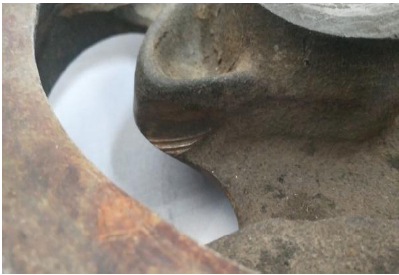

Figure 2

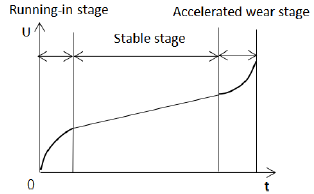

Figure 3

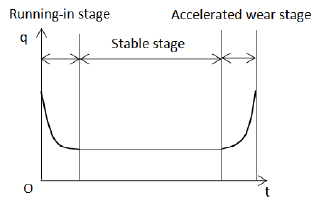

Figure 4

Figure 5

Figure 6

Figure 7

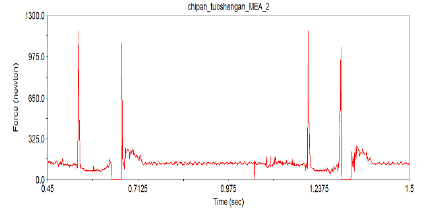

Figure 8

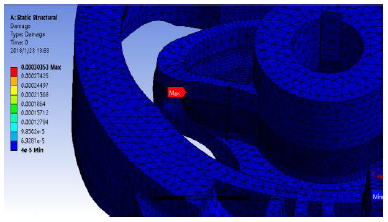

Figure 9

Figure 10

Table 1

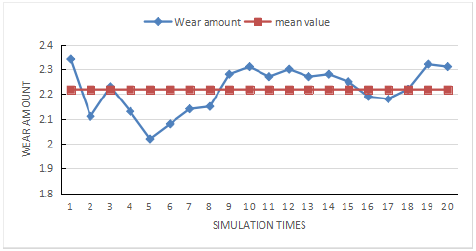

Figure 11

Table 2

Figure 12

Table 3

References 17

[1]	H. K. Chen , “Mechanical Foundation,” China Labor Social Security Press, Beijing, 2007
[2]	L. J. Chen, C. li, and A. Q. Zhang , “Reconstruction and Motion Simulation of D-Type Knotting based on Reverse Engineering,” Journal of Agricultural Mechanics, Vol. 45, No. 13, pp. 104-108, 2014 doi: 10.6041/j.issn.1000-1298.2014.12.017
[3]	J. Dong and Y. Wen ,“Rotational Swashplate Pulse Continuously Variable Transmission based on Helical Gear Axial Meshing Transmission,” Chinese Journal of Mechanical Engineering, Vol. 25, No. 6, pp. 1138-1143, 2012 doi: 10.3901/CJME.2012.06.1138
[4]	W. Huang, Z. Y. Zhang, Z. Q. Liu , “Pro/Engineer Simulation and Action Function Analysis of D-Type Knotter,” Research on Agricultural Mechanization, pp. 58-60, 2009
[5]	H. Li, J. He, H. W. Li , “Study on the Spatial Parameters of the Knotting Machine of the Square Bundle Balere,” Journal of Agricultural Machinery, Vol. 44, No. 8, pp. 9-105, 2013
[6]	H. Li, J. He, Q.J. Wang, H.W. Li, and R. R. Gautam , “Design and Experiment of D-Type Knots Knotters on Chinese Small Square Balers,” Chinese Journal of Mechanical Engineering, Vol. 27,No. 1,pp. 154-165, 2014 doi: 10.3901/CJME.2014.01.154
[7]	H. Li, H. W. Li, J. He , “Construction and Optimization of the Drive Plate for D-Type Knotting Machine with Square Straw Baler,” Journal ofAgricultural Mechanization, Vol. 26, No. 5, pp. 97-102, 2010
[8]	H. T. Li, Y. Xiong, L. J. Chen, S. Y. Zhang, X. Li, L. J. Han , “Wear Analysis and Improved Design of Cutting Rope Tripping Mechanism,” Journal ofAgricultural Machinery, Vol. 46, No. 3, pp. 118-124, 2015
[9]	S. Li , “D-Type Knotted Rope Tied Knot Principle and Optimization Design,” Ph.D. Jiangsu University, 2011
[10]	J. Lu , “Study on Structure and Parameter Optimization of the D-Type Knotter of Straw Baling Machine,” Ph. D. Northeast Agricultural University, 2014
[11]	D. Z. Ren, C. G. Wang, X. Y. Li , “Drive Tooth Plate Modal Analysis of D-Type Knotter,” Agricultural Mechanization Research, pp. 58-65, 2014
[12]	G. Su, J. X. Shi, J. Ge , “Measurement of the Space Angle of the Knotting Machine of a Baling Machine based on Reverse Engineering,” Journal ofAgricultural Machinery, Vol. 39, No. 6, pp. 81-83, 2008
[13]	Z. L. Sun, G. Z. Ji, Y. T. Yan, and Q. Yang , “Design and Analysis Technology of Mechanism Motion Reliability,” National Defense Industry Press, Beijing, 2015
[14]	Q. H. Wan, K. Bu, Z. Y. Zhang, B. S. Li , “Structure and Motion Analysis of D-Type Knotting Device,” Agricultural Mechanization Research, pp. 17-19, 2009
[15]	J. R. Xu , “Research on CAD /CAM of Acceleration and Deceleration Cam Mechanism,” Journal ofMechanical Engineering and Automation, No. 5, pp. 71-72, 2011
[16]	Y. Xiong, H. T. Li, S. Y. Zhang, L. J. Chen, X. Li, L. J. Han , “Study on the Motion Law and Design Basis of a Knot Cutter to Cut the Rope Tripping Mechanism,” Journal of Agricultural Mechanization Research, No. 7, pp. 113-118, 2015
[17]	J. J. Yin, S. li, and Y. M. li , “Simulation and Timing Analysis of D-Type Knotter and Its Auxiliary Mechanism,” Journal ofAgricultural Machinery, Vol. 42, No. 6,pp. 103-107, 2011

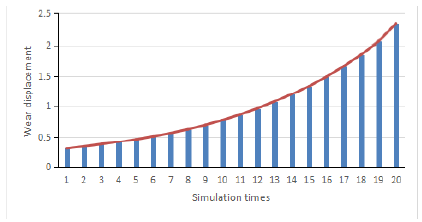

Simulation time	Wear displacement	Simulation time	Wear displacement
1	0.304	11	0.864
2	0.339	12	0.964
3	0.376	13	1.076
4	0.416	14	1.201
5	0.46	15	1.34
6	0.509	16	1.494
7	0.564	17	1.664
8	0.626	18	1.851
9	0.696	19	2.056
10	0.775	20	2.34

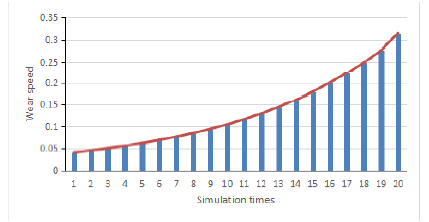

Simulation time	Wear speed	Simulation time	Wear speed
1	0.0408	11	0.1041
2	0.0455	12	0.1161
3	0.0505	13	0.1295
4	0.0559	14	0.1446
5	0.0618	15	0.1614
6	0.0684	16	0.1801
7	0.0758	17	0.2008
8	0.0841	18	0.2236
9	0.0935	19	0.2487
10	0.0408	20	0.2763

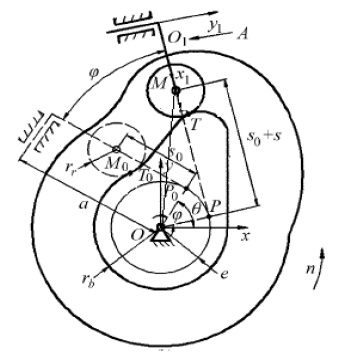

The pushtravel angle${{\phi }_{1}}$:	0~63.170	The radius of the cam follower	1.25cm
The return angle${{\phi }_{2}}$:	63.170~123.170	CAM rotation speedn:	90r/min
The distance of run in cam followerh:	2cm	CAM angular velocityω:	3πrad/s
The radius of camshafte:	2.8cm	Design service lifet:	40000 time
The Outer arc radius of camr_b:	4.2cm
