Optimization of Dynamic Characteristics of Automatic-Firing Muzzle with Damping

doi:10.23940/ijpe.19.01.p1.112

Abstract

Abstract:

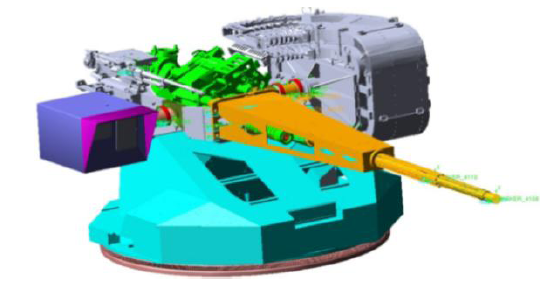

In order to improve the inadequate firing accuracy of the existing prototype of a 30-mm caliper gun overhead weapon station, a triple-index constrained optimization model with damper is developed with the consideration of a real-world operating environment. Furthermore, a method of deriving the characteristic parameters of the damper is proposed based on the triple indices, and the optimal damping parameters are obtained. Simulation results show that the dynamic characteristics of the automatic-firing muzzle of the overhead weapon station with the proposed damper have been significantly improved, where the dispersion variances of horizontal and pitching are decreased by more than 30%, indicating that the firing accuracy is considerably enhanced. The result can be applied for the development of overhead weapon stations in the future.

Key words: the overhead weapons station, optimization of dynamic characteristics of muzzle, the damping buffer device, triple-index constraints

Zhiqian Wang, Baoquan Mao, Yongliang Wu, Xianghua Bai, Shuai Feng, Xiaoping Han, Cheng Li, and Tu Lan. Optimization of Dynamic Characteristics of Automatic-Firing Muzzle with Damping [J]. Int J Performability Eng, 2019, 15(1): 1-12.

Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

Figures/Tables 10

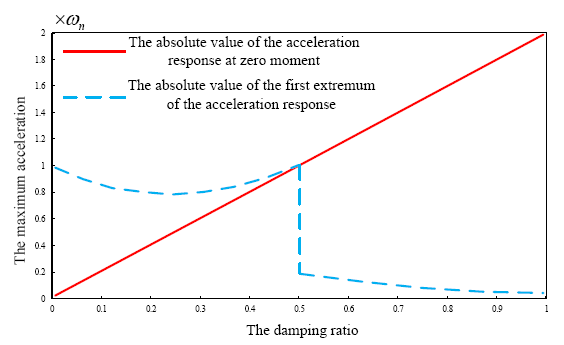

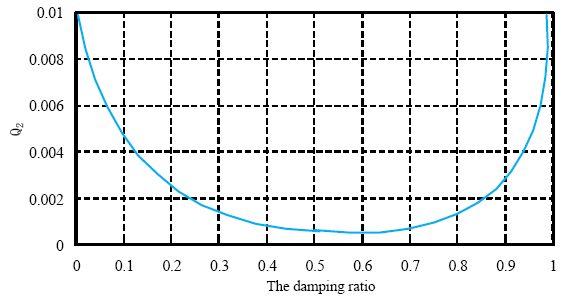

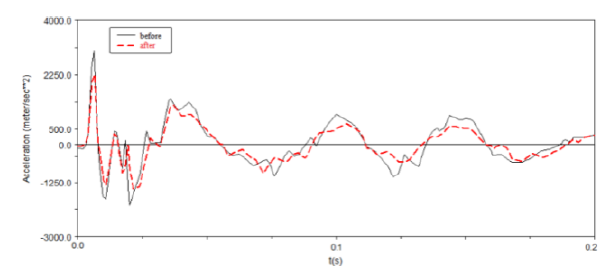

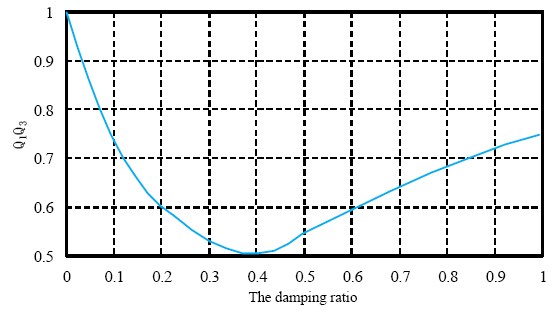

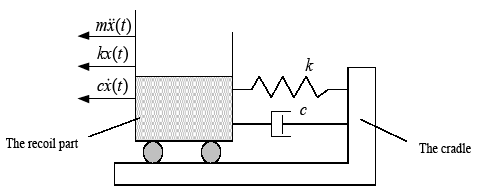

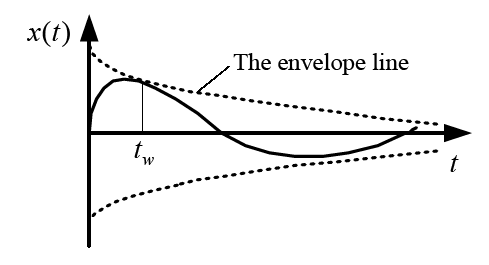

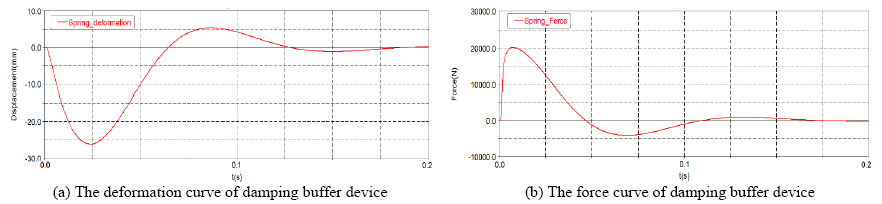

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

Figure 8

Figure 9

Table 1

References 17

[1]	B.Q. Mao, Y. L. Wu, Y. S. Gao, W. Dan, F. Q. Lei , “A Summary for Vehicular Overhead Weapon Stations,” Journal of Academy of Armored Force Engineering, Vol. 27, No. 5, pp. 1-7, May 2013
[2]	Y. Liang, J. R. Alvarado, K. D.Iagnemma, A. E. Hosoi , “Dynamic Sealing Using Magneto-Rheological Fluids,”arXiv Preprint arXiv, Vol. 1802, pp. 07912, 2018
[3]	A. Rossi, F. Orsini, A. Scorza , et al., “A Review on Parametric Dynamic Models of Magnetorheological Dampers and Their Characterization Methods,” Actuators, Multidisciplinary Digital Publishing Institute, Vol. 7, No. 2, February 2018
[4]	B. S. M. Modrezejewski and S. Spears , “Rotating Shaft Damping with Electro-Rheological Fluid,” U.S. Patent 9, Vol. 841,pp. 077, 2017
[5]	B. Titurus, J. D. Bois, N. Lieven, and R. Hansford , “A Method for the Identification of Hydraulic Damper Characteristics from Steady Velocity Inputs,” Mechanical Systems and Signal Processing, Vol. 24, No. 8, pp. 2868-2887, August 2010 doi: 10.1016/j.ymssp.2010.05.021
[6]	C. S. J. Chandra, P. K. Bipinbal, and K. N. Sunil , “Viscoelastic Behaviour of Silica Filled Natural Rubber Composites-Correlation of Shear with Elongational Testing,” Polymer Testing, Vol. 60, pp. 187-197, 2017
[7]	B. Jiang, L. Q. Zhu, C. Z. Zhao, Z. R. Chen , “An Investigation on the Bound Rubber and Dynamic Mechanical Properties of Polystyrene Particles-Filled Elastomer,” Polymer Composites, Vol. 38, No. 6, pp. 1112-1117, June 2017 doi: 10.1002/pc.23673
[8]	S. Nozaki, T. Hirai, Y. Higaki, K. Yoshinaga, A. Takahara , “Effect of Chain Architecture of Polyol with Secondary Hydroxyl Group on Aggregation Structure and Mechanical Properties of Polyurethane Elastomer,” Polymer, Vol. 116, pp. 423-428, 2017 doi: 10.1016/j.polymer.2017.03.031
[9]	H. J. Zhu, J. Yang, Y.Q. Zhang, X. X. Feng , “A Novel Air Spring Dynamic Model with Pneumatic Thermodynamics, Effective Friction and Viscoelastic Damping,” Journal of Sound and Vibration, Vol. 408, pp. 87-104, 2017 doi: 10.1016/j.jsv.2017.07.015
[10]	M. Ahamadian, R.J. Appleton, J.A. Norris , “An Analytical Study of Fire Out of Battery Using Magneto-Rheological Dampers,” Shock and Vibration, Vol. 9, pp. 129-142, 2002 doi: 10.1155/2002/983140
[11]	M. Ahamadian, R.J. Appleton, J.A. Norris , “Designing Magneto-Rheological Dampers in a Fire Out-of-Battery Recoil System,” IEEE Transcations on Magnetics, Vol. 39, pp. 21-25, 2003 doi: 10.1109/TMAG.2002.806381
[12]	L. Jia , “Optimization Design of the New Metal Rubber Buffer on Artillery,”Xi’An Technological University, Xi’An, 2013
[13]	S. R. Patil, S. Krishna, S. S. Gawade , “Preparation, Characterization and Performance Analysis of BTO based High Yield Strength Electro-Rheological Fluid in Artillery Gun Recoil System Using FEA Approach,” Materials Today: Proceedings, Vol. 5, No. 2, pp. 8222-8231, February 2018 doi: 10.1016/j.matpr.2017.11.512
[14]	S. Y. Chen , “Research on Damping Parameter Identification of Elastomer Buffer,” Nanjing University, Nanjing, 2015
[15]	S.J. Shan and L. He , “Study on Error Source and Applicable Condition of Velocity Step Technique for Estimating Shock Response Amplitude,” Journal of Vibration and Shock, Vol. 26, No. 1, pp. 90-95, January 2007 doi: 10.1016/S0252-9602(07)60014-9
[16]	S.Z. Yang and K. C. Yang , “Basic Mechanic Engineering Control,”Huazhong University of Science and Technology, Wuhan, 2000
[17]	X.J. Wu and S. J. Zhu , “Parameters Optimization of Shock Isolator Composed of Ordinary Components,” Journal of Vibration and Shock, Vol. 24, No. 5, pp. 71-74, May 2005

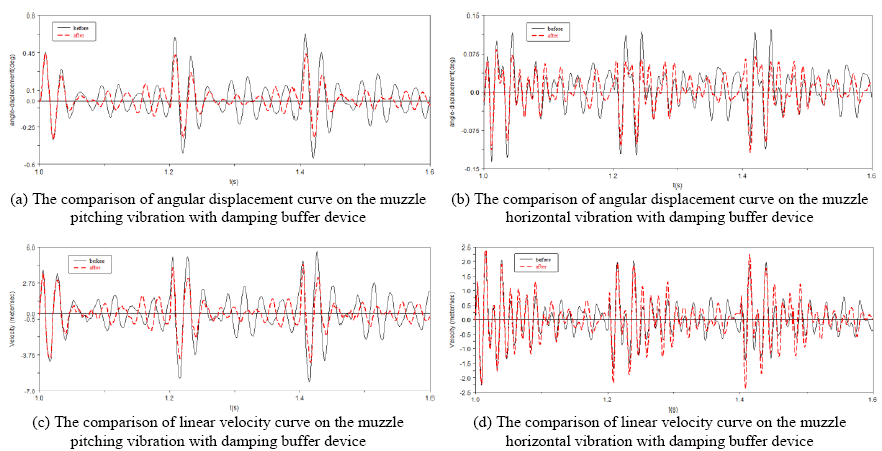

	The variance of pitching angular displacement	The variance of horizontal angular displacement	The variance of pitching linear velocity
Without	0.000674	0.000073	0.066471
With	0.000467	0.000043	0.034728
Change rate/%	30.71	41.10	47.75
	The variance of horizontal linear velocity	The dispersion variance of pitching	The dispersion variance of horizontal
Without	0.010007	0.0113	0.0013
With	0.009139	0.0073	0.0009
Change rate/%	8.68	35.40	30.77
