Structural Design and Optimization of an Underwater Skirt Pile Gripper

doi:10.23940/ijpe.18.12.p13.30333042

Abstract

Abstract:

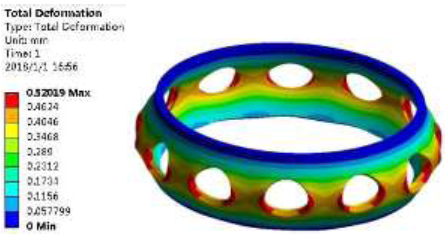

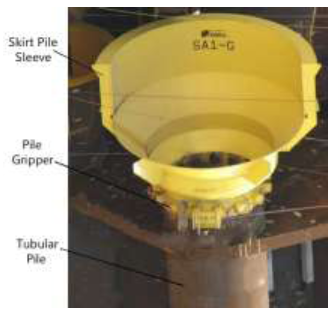

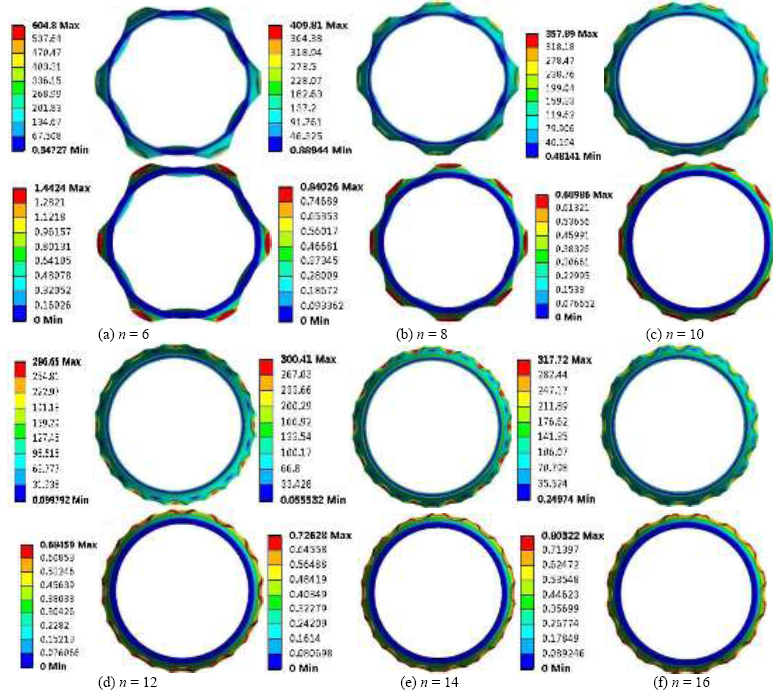

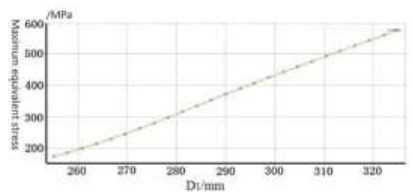

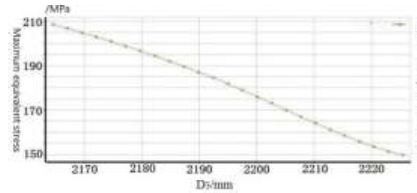

A hydraulic skirt pile gripper (the gripper or the pile gripper) is widely used in the installation and construction of offshore platforms, and it mainly plays the role of clamping pipe piles during the construction of the offshore platform for ensuring the subsequent grouting. The number of holes in the body of the pile gripper has a great influence on the force of the body. Finite element software was used to simulate the force of the body with different numbers of holes. Then, a suitable number of holes was selected according to the stress and strain of the body. At the same time, with a smaller diameter of the pile and a larger diameter of the hole, the diameter and the height of the gripper body had a significant effect on the stress-strain of the body. In this paper, the ANSYS software was used to establish a design model and optimization was conducted. The fuzzy matter-element method was used to select the optimal design. After optimization, the maximum equivalent stress of the body was reduced by 14.75% and the volume of the body was reduced by 4.8%. The optimization method in this paper is effective.

Key words: skirt pile gripper, structural design, body optimization, fuzzy matter method

Haixia Gong, Huailiang Li, Wentai Yu, Shunqing Liu, Sidie Yang, and Chenye Wang. Structural Design and Optimization of an Underwater Skirt Pile Gripper [J]. Int J Performability Eng, 2018, 14(12): 3033-3042.

Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

Figures/Tables 16

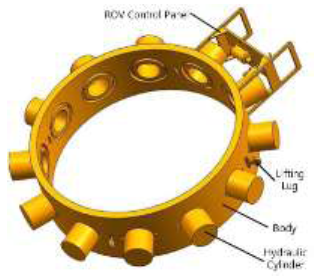

Figure 1

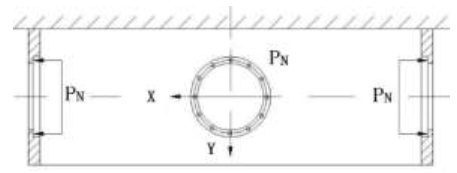

Figure 2

Figure 3

Figure 4

Table1

Figure 5

Figure 6

Figure 7

Figure 8

Figure 9

Figure 10

Figure 11

Table2

Table 3

Figure 12

Figure 13

References 14

[1]	B. Zhu, G. Chen, K. Liu , “Typhoon-Resistant Ultimate Bearing Capacity of Deep-Water Jacket Platforms,” Acta Pertrolei Sinica, Vol. 35, No. 1, pp. 152-158, January 2014
[2]	Q. Meng, Z. Sun, D. Zhou , “Contact Finite Element Analysis of the Pressing Block Tooth in Underwater Skirt Pile Gripper of Offshore Oil Platform,” Machinery, Vol. 33, No. 12, pp. 1-4, December 2006
[3]	Z. Sun, Q. Meng, D. Zhou , “Structure Optimization of the Pressing Block Tooth in Underwater Skirt Pile Gripper of Offshore Oil Platform,” Machine Design & Research, Vol. 22, No. 6, pp. 102-105, December 2006 doi: 10.1109/SIPS.2006.352550
[4]	F. Liang, X. Yan, W. Zhang , “Mechanical Analysis of Jacket Pile Gripper and Choice of the Number of Hydraulic Pressure Vats,” The Ocean Engineering, Vol. 25, No. 1, pp. 82-87, February 2007 doi: 10.1016/S1001-6058(07)60030-4
[5]	P. Jiang , “Mechanical Analysis on Underwater Leveling-Gripping System of Jacket and Experimental Research,” Harbin Engineering University, Harbin, October 2012
[6]	P. Jiang and X. Fang , “Analysis and Experimental Study on the Grip Function of an Underwater Skirt Pile Gripper,” Journal of Harbin Engineering University, Vol. 32, No. 9, pp. 1228-1232, September 2011 doi: 10.3969/j.issn.1007-7043.2011.09.023
[7]	H. Wang, L. Zhang, Q. Meng , “Analysis of Ocean Pile Platform Leveler Clamping Working Mechanism,” Machine Tool and Hydraulics, Vol. 45, No. 9, pp. 76-79, September 2017
[8]	Z. Sun, Q. Meng, J. Wu , “Check Ring Joint Structure Design in Underwater Skirt Pile Gripper based on Body Contact Nonlinear Finite Element Analysis,” Journal of Engineering Design, Vol. 14, No. 2, pp. 117-120, 12, April 2007 doi: 10.1016/S1872-2040(07)60059-0
[9]	Z. Sun, Q. Meng, L. Wang , “Structure Optimization Design of Hydraulic Cylinder of Underwater Skirt Pile Gripper of Offshore Oil Platform,” Petroleum Engineering Construction, Vol. 33, No. 1, pp. 27-30, 5, February 2007 doi: 10.1081/MB-100107566
[10]	A. Shukla and H. Karki , “Application of Robotics in Offshore Oil and Gas Industry-A Review PartⅡ,” Robotics and Auto Nous Systems, Vol. 75, Part B, pp. 508-524, January 2016 doi: 10.1016/j.robot.2015.09.013
[11]	R. Li, J. Ding, P. Cao , “Optimization Design of Pressing Machine Frame by ANASYS Workbench Software,” Journal of Northeast Forestry University, Vol.45, No. 12, pp. 62-66, December 2017
[12]	M. Zhou, L. Zhang, Y. Chen, M. Liu , “Structural Optimization for Rack of Boat-Type Tractor based on Sensitivity Analysis,” Transactions of the Chinese Society of Agricultural Engineering, Vol. 32, No. 12, pp. 54-60, June 2016 doi: 10.11975/j.issn.1002-6819.2016.12.008
[13]	P. E. Uys, P. S. Els, M. Thoresson , “Suspension Setting for Optimal Ride Comfort of Off-Road Vehicles Travelling on Roads with Different Roughnessand Speeds,” Journal ofTerramechanics, Vol.44,No. 2, pp. 163-175, 2007 doi: 10.1016/j.jterra.2006.05.002
[14]	S. Wang, A. Wu, B. Han , “Fuzzy Matter-Element Evaluation of Ore-Rock Capability in Block Caving Method,” Chinese Journal of Rock Mechanics and Engineering, Vol.33, No. 6, pp. 1241-1247, June 2014

Program		Original program	Optimization
Program		${{A}_{0}}$	${{A}_{1}}$	${{A}_{2}}$	${{A}_{3}}$	${{A}_{4}}$	${{A}_{5}}$	${{A}_{6}}$

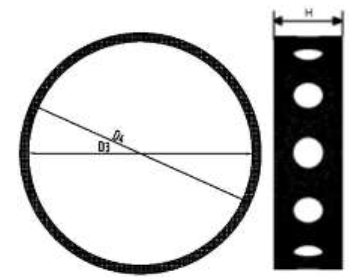

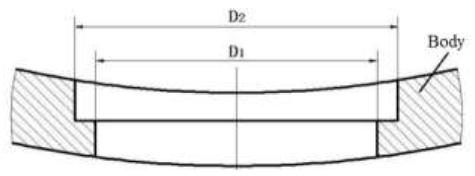

Design variable	${{D}_{1}}$/mm	305	335.53	330.21	324.5	324.47	274.5	275.19

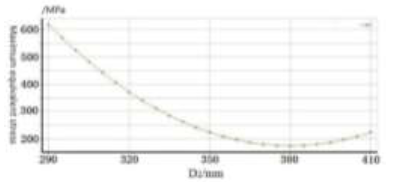

	${{D}_{2}}$/mm	350	380	360.35	330.99	330.94	335.25	323.51
	${{D}_{3}}$/mm	2210	2200.41	2207.54	2180.23	2190.10	2220.92	2209.66

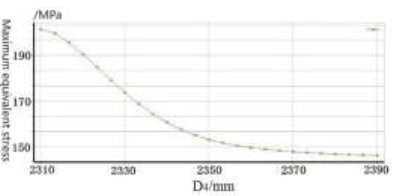

	${{D}_{4}}$/mm	2370	2360.68	2375.32	2320.73	2330.24	2370.34	2360.32

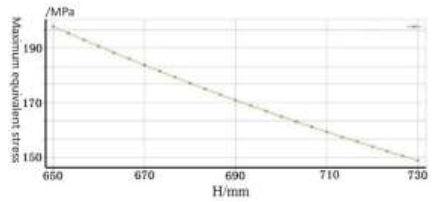

	H/mm	700	675.2	700.25	710.81	698.63	702.93	685.17
Target of optimization	V/dm³	333	303	335	283	278	326	317

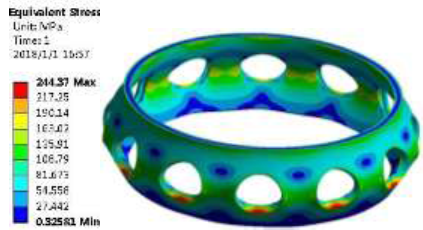

Target of optimization	${{\sigma }_{ea}}$/MPa	286.65	281.32	251.88	496.37	320.12	338.37	244.37
